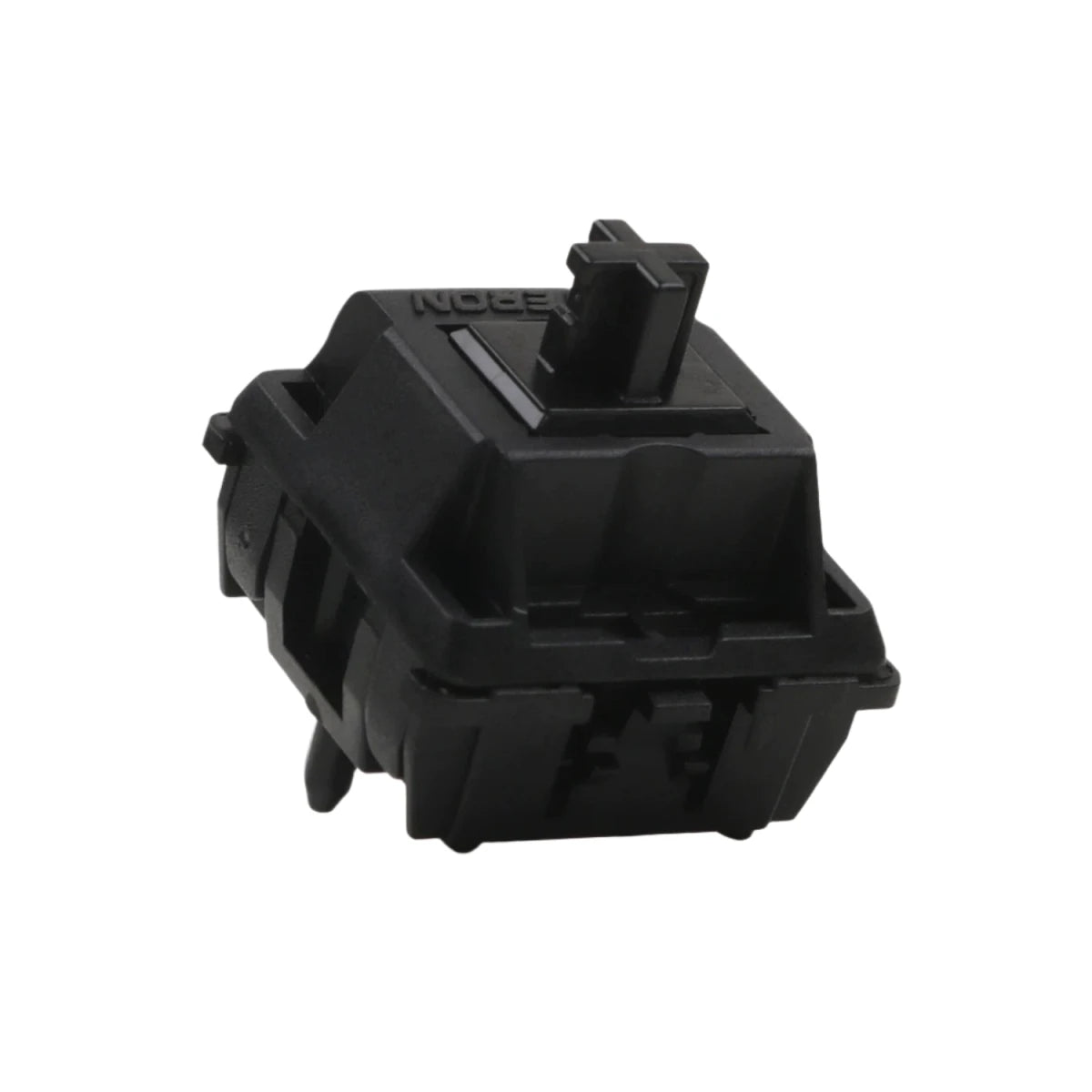

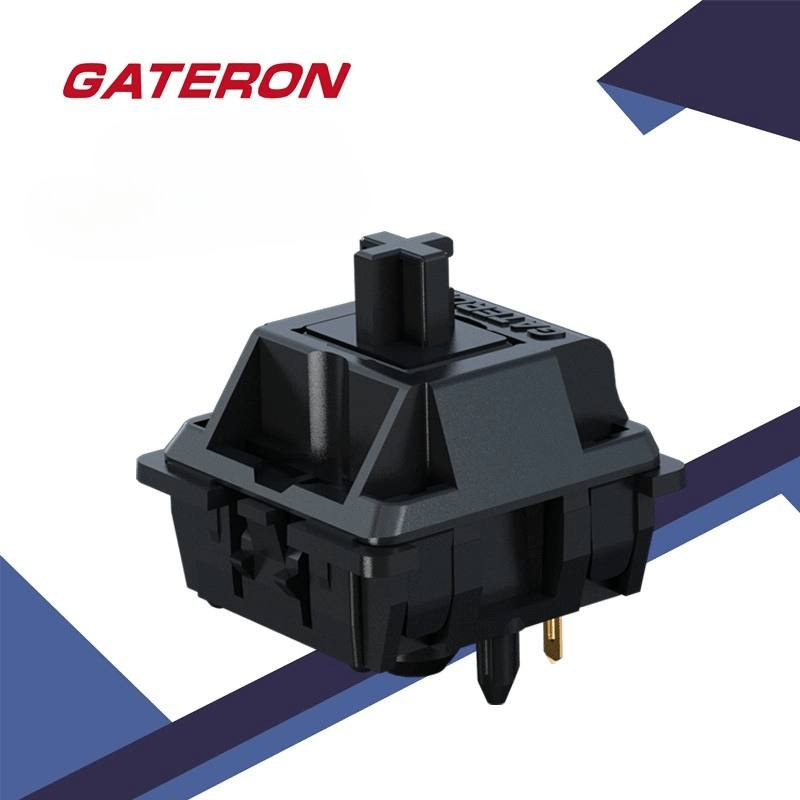

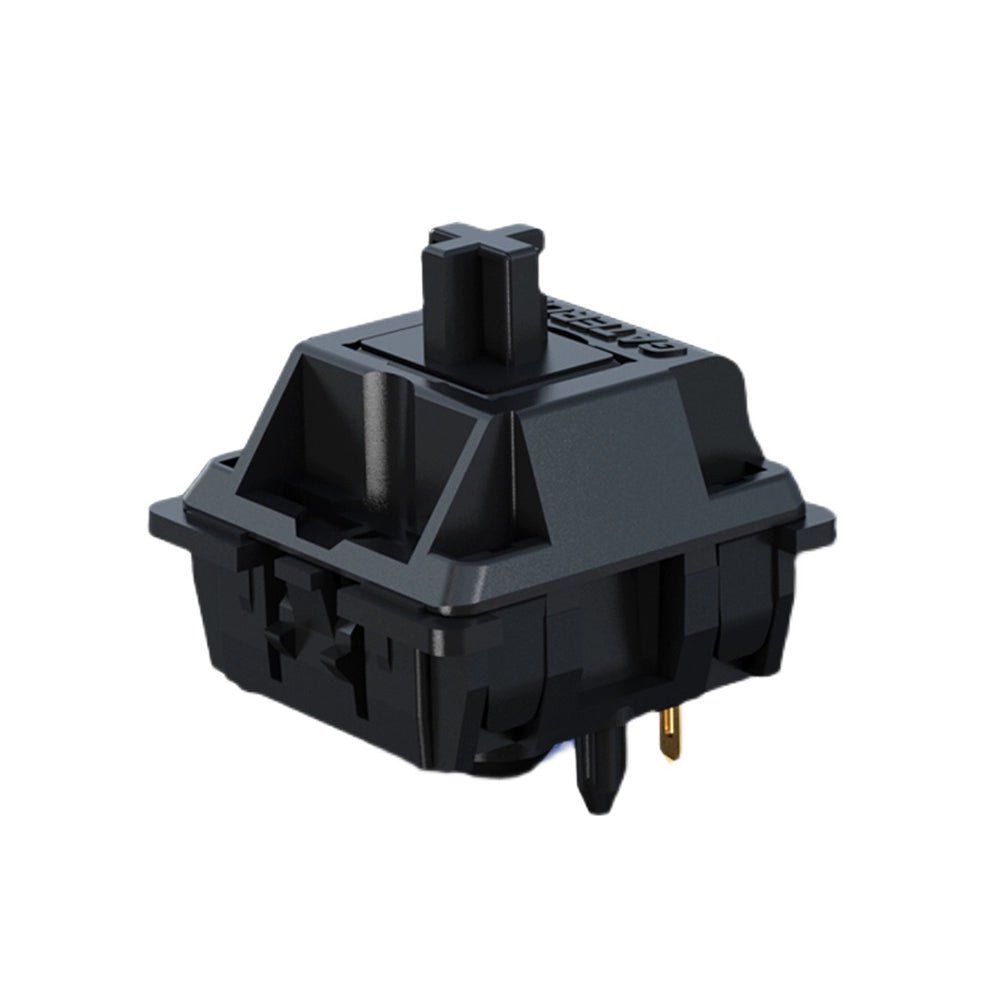

The GATERON Oil King Switch is built for enthusiasts who demand smooth, reliable linear performance with every press.
Featuring a self-lubricating stem and factory-lubed internals, it delivers an ultra-smooth feel right out of the box. The 55gf actuation and 65gf bottom-out force offer a balanced, responsive typing experience without unnecessary resistance.
Its 20mm extended spring improves rebound stability, while the gold-plated contacts enhance conductivity and durability. Designed with a 5-pin layout, it’s fully compatible with hot-swappable mechanical keyboards and a wide range of LED types.
Key Specifications
-
Type: Linear
-
Actuation Force: 55gf ±5gf
-
Bottom-Out Force: 65gf ±5gf
-
Total Travel: 4.0mm max
-
Spring: 20mm extended spring
-
Lifespan: 60 million keystrokes (min)
-

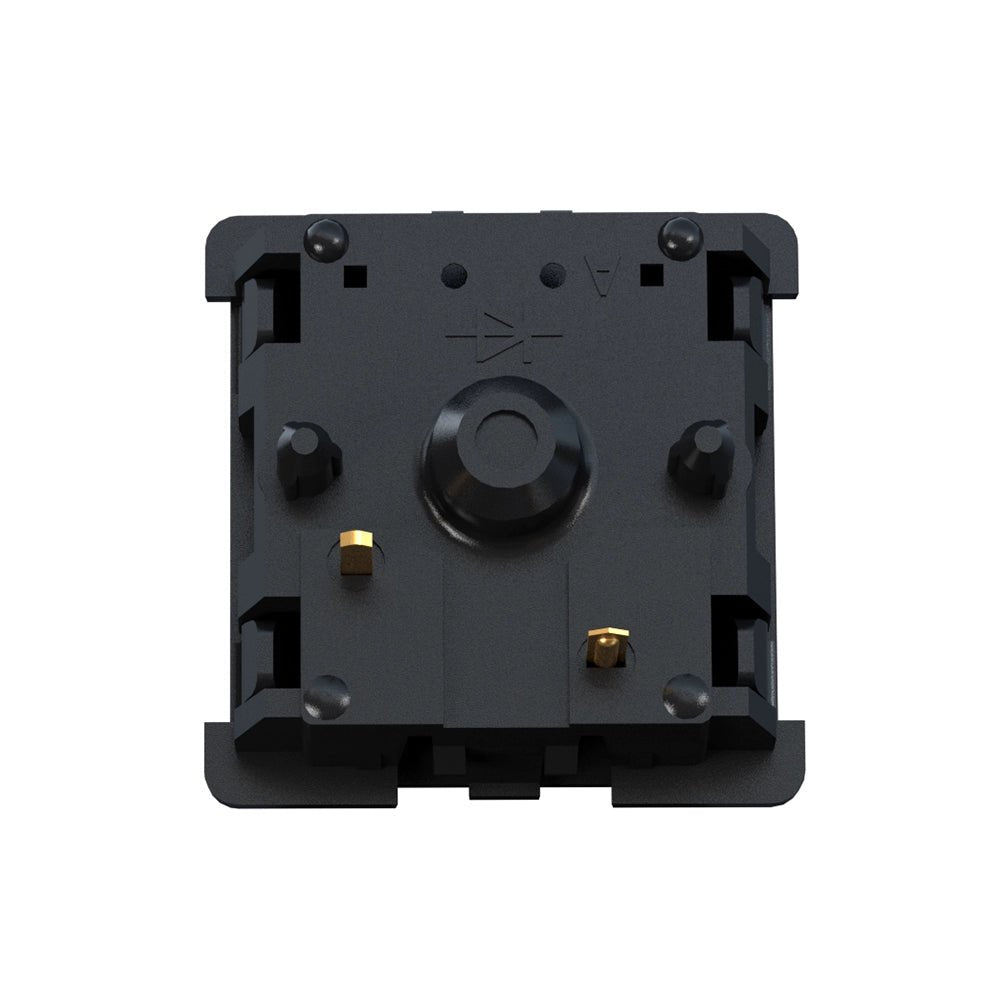

Mounting: 5-pin (PCB mount)
-
Factory Lubed: Yes
-
Contact Material: Gold-plated
-
LED Compatibility: Supports 2-pin, 4-pin, and flat SMD LEDs
Smooth, responsive, and built to last—GATERON Oil King brings premium linear performance to every keypress.
