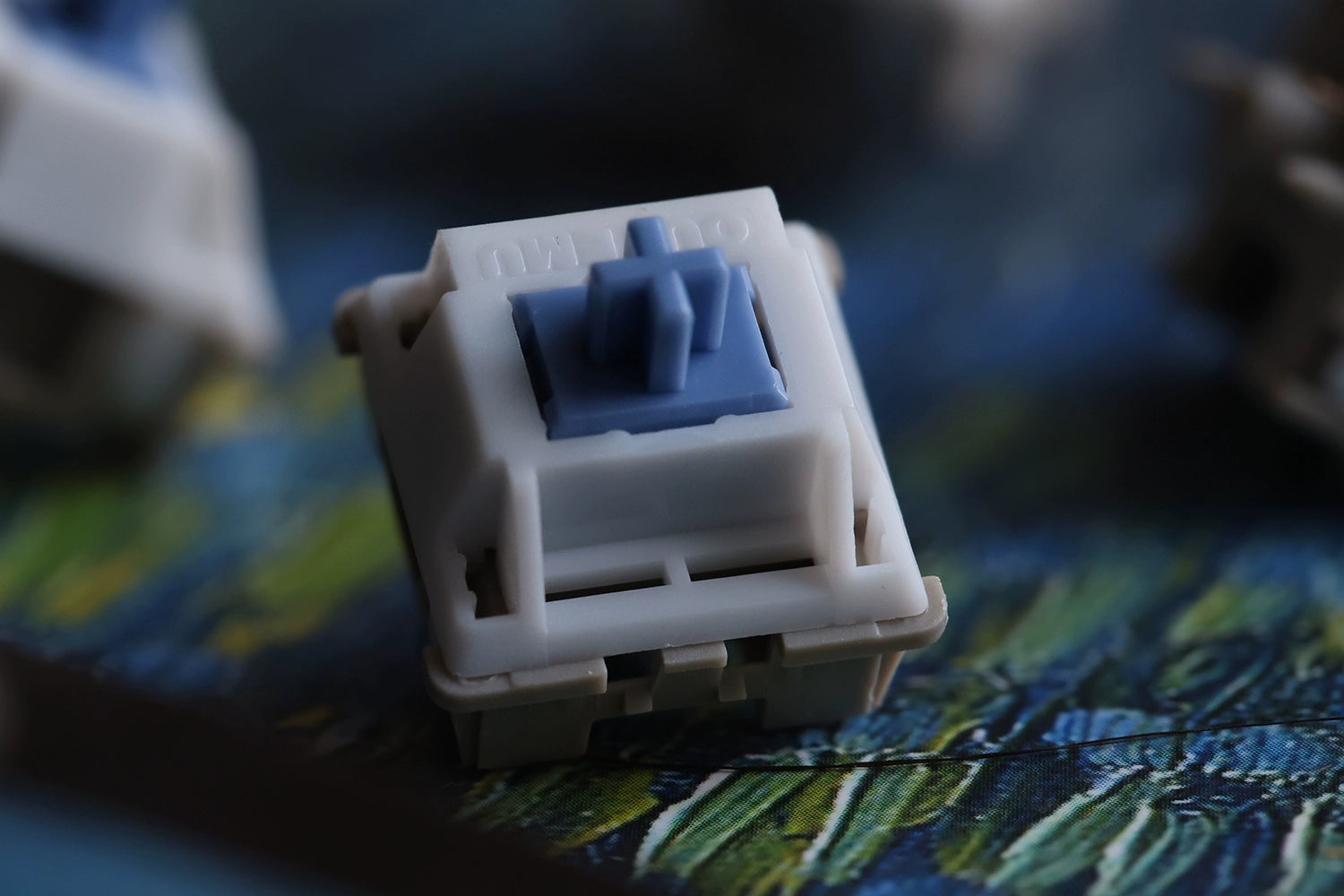

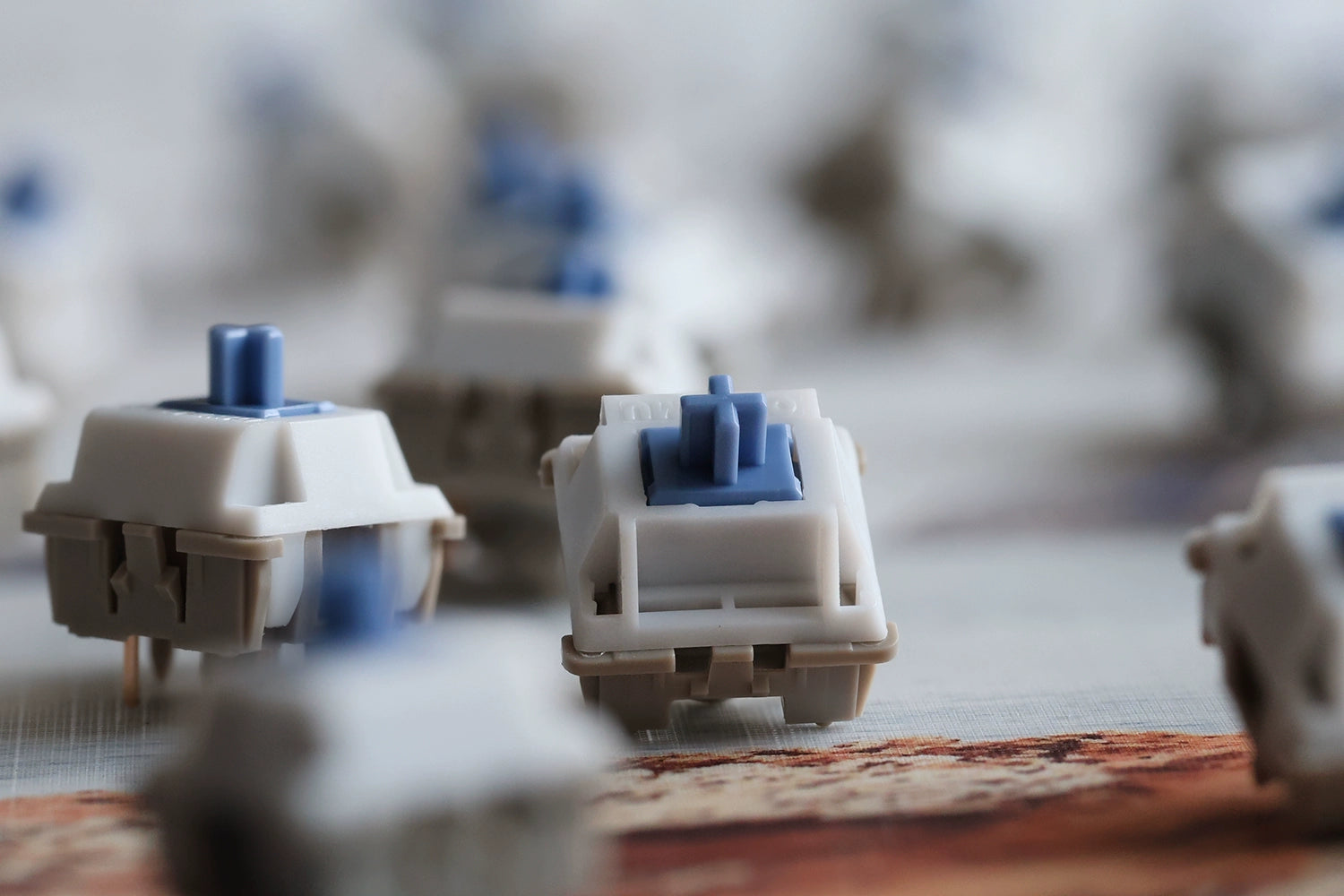

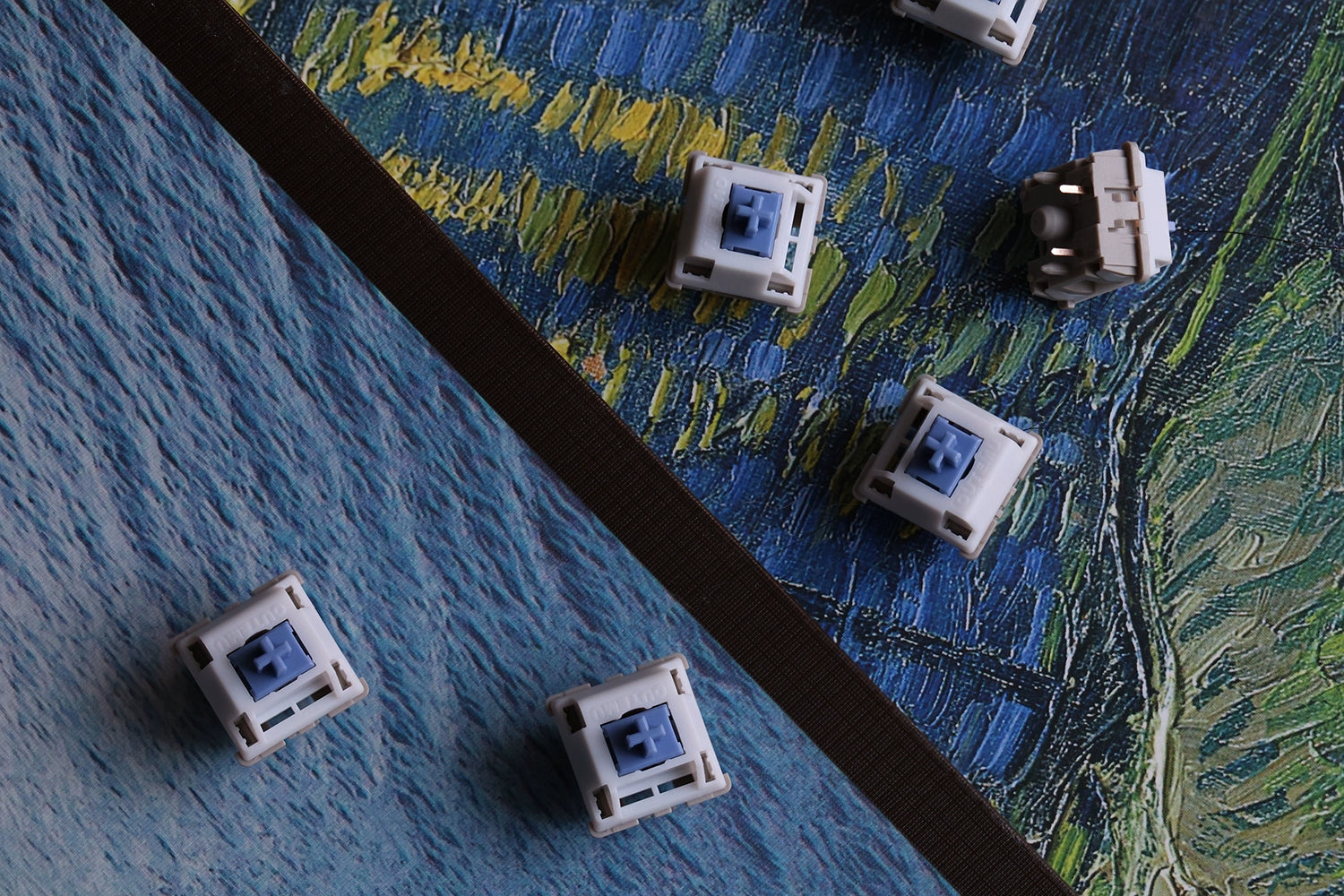

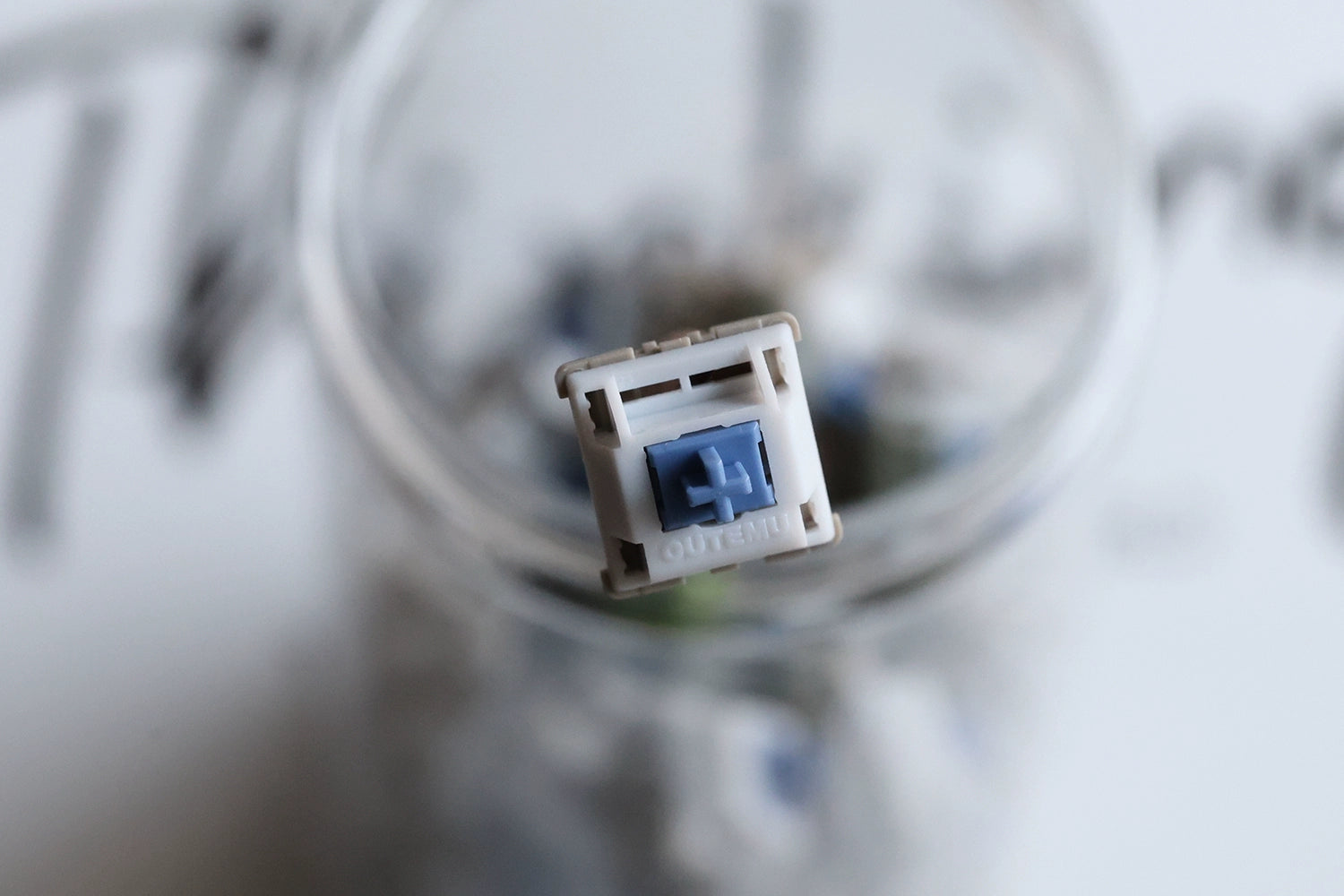

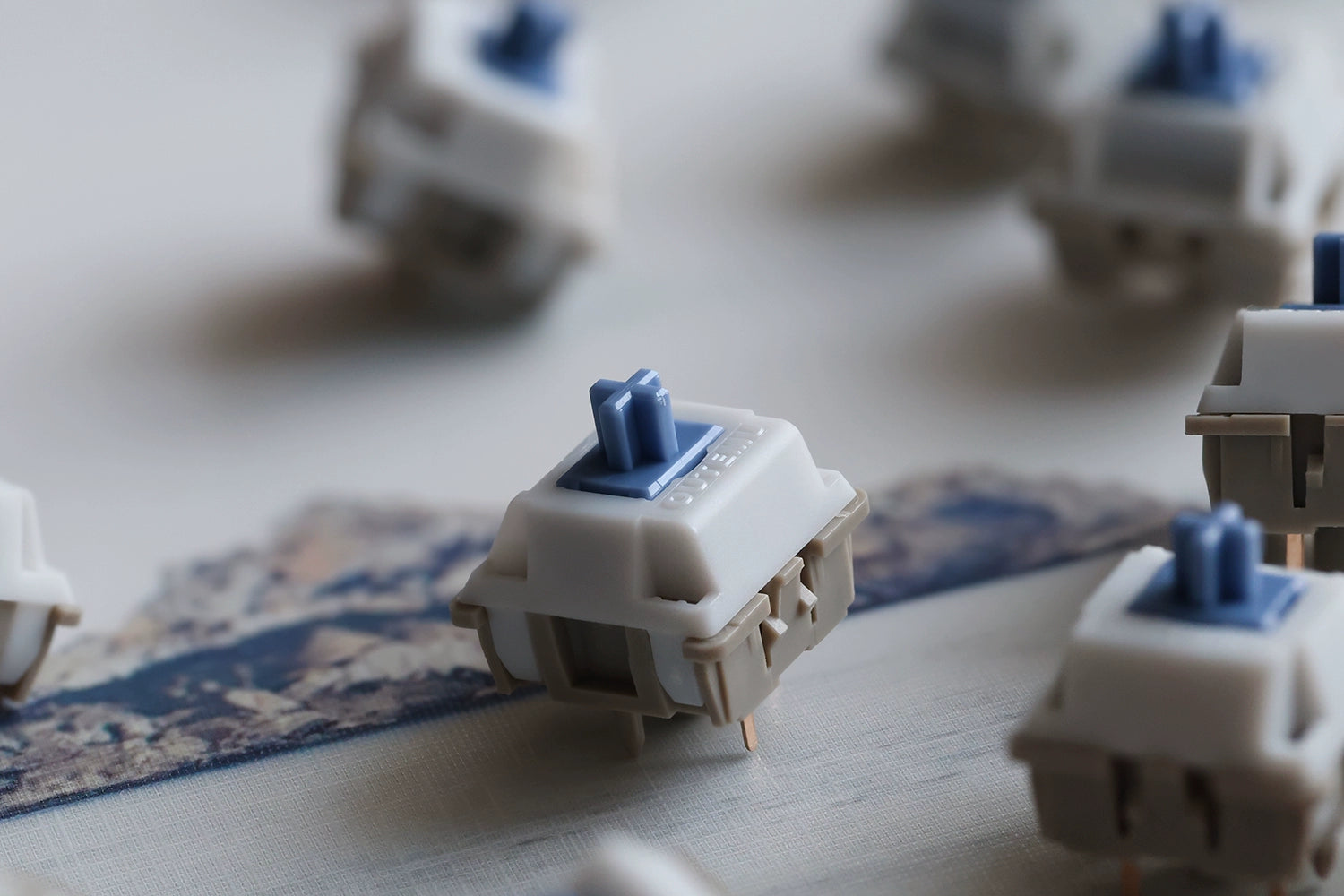

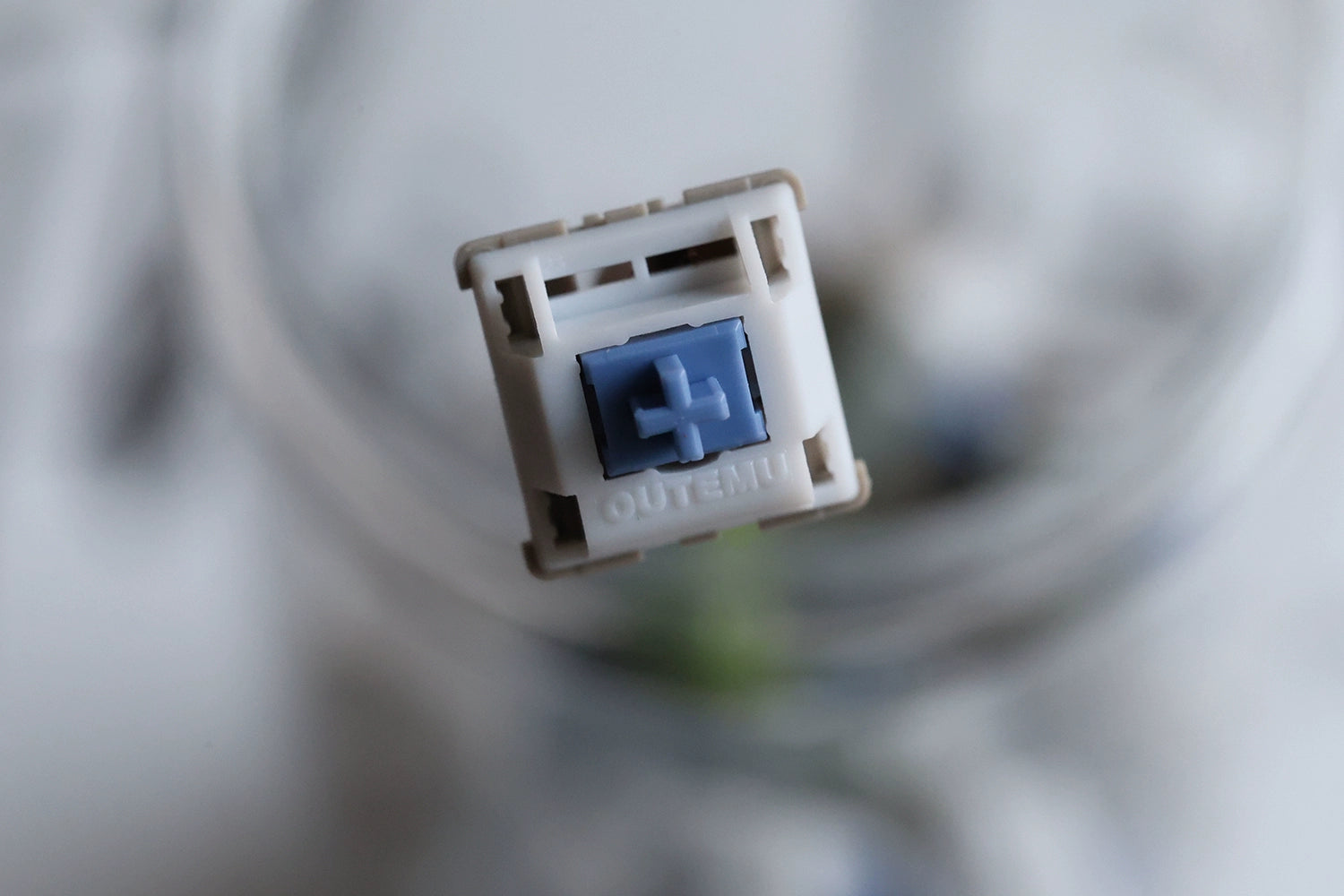

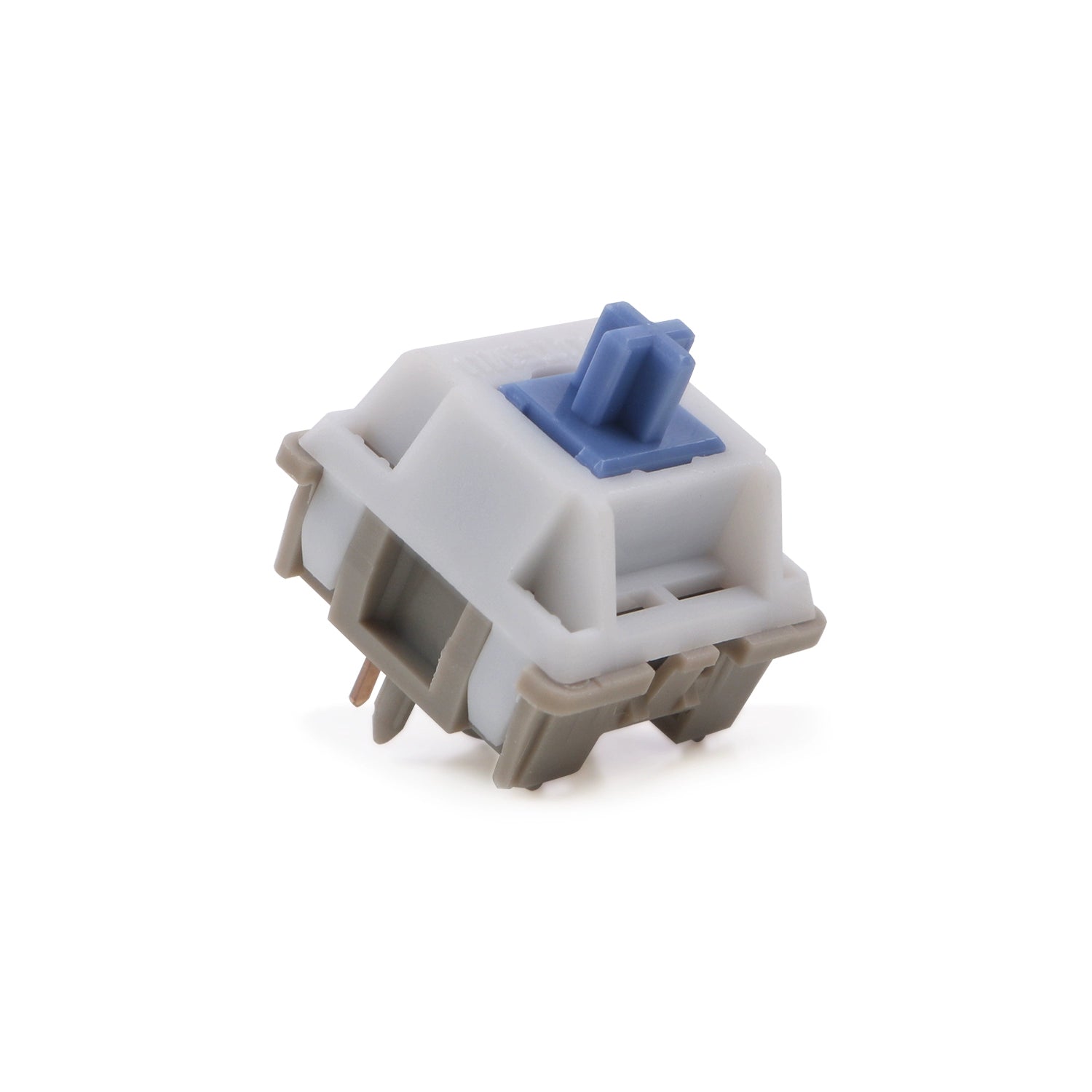

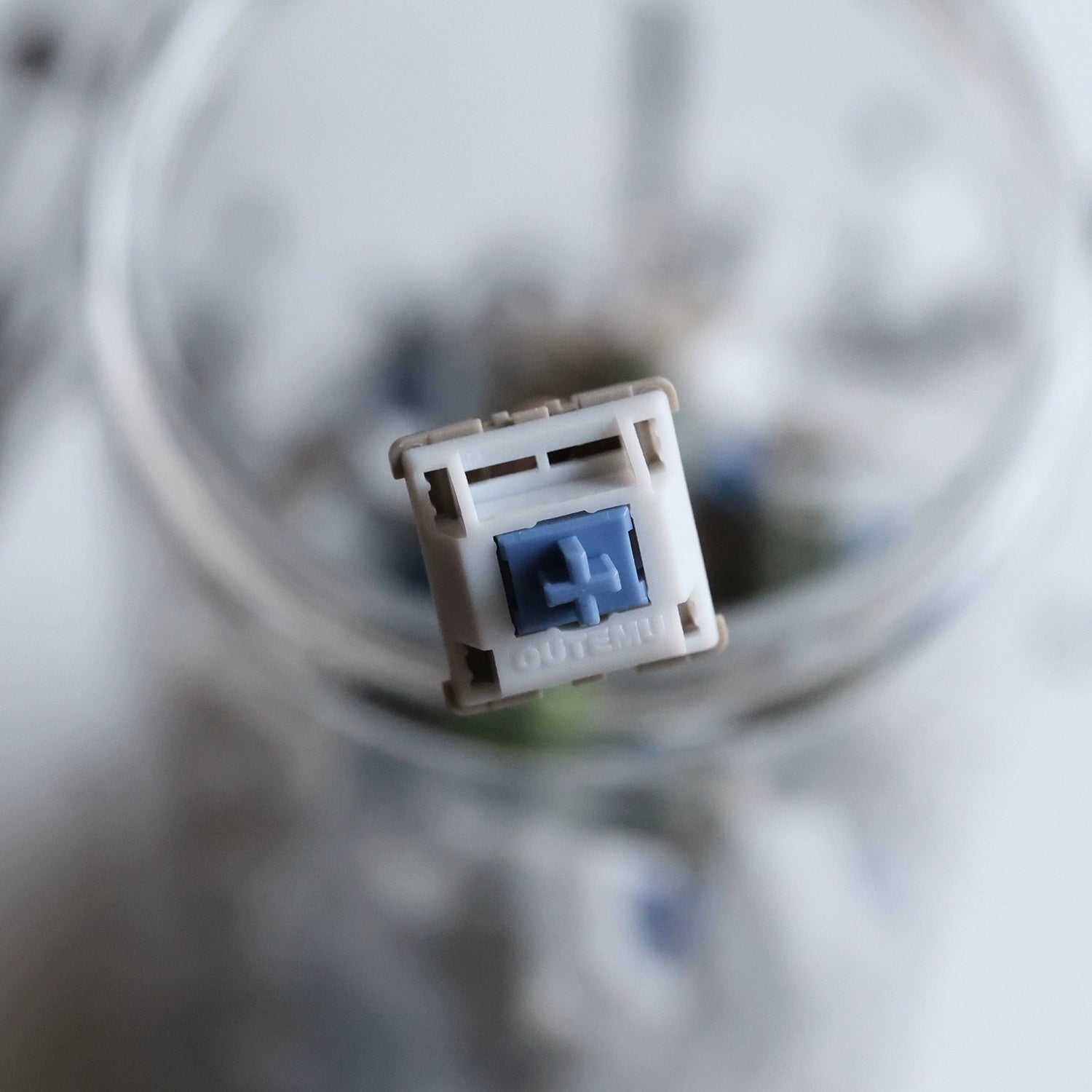

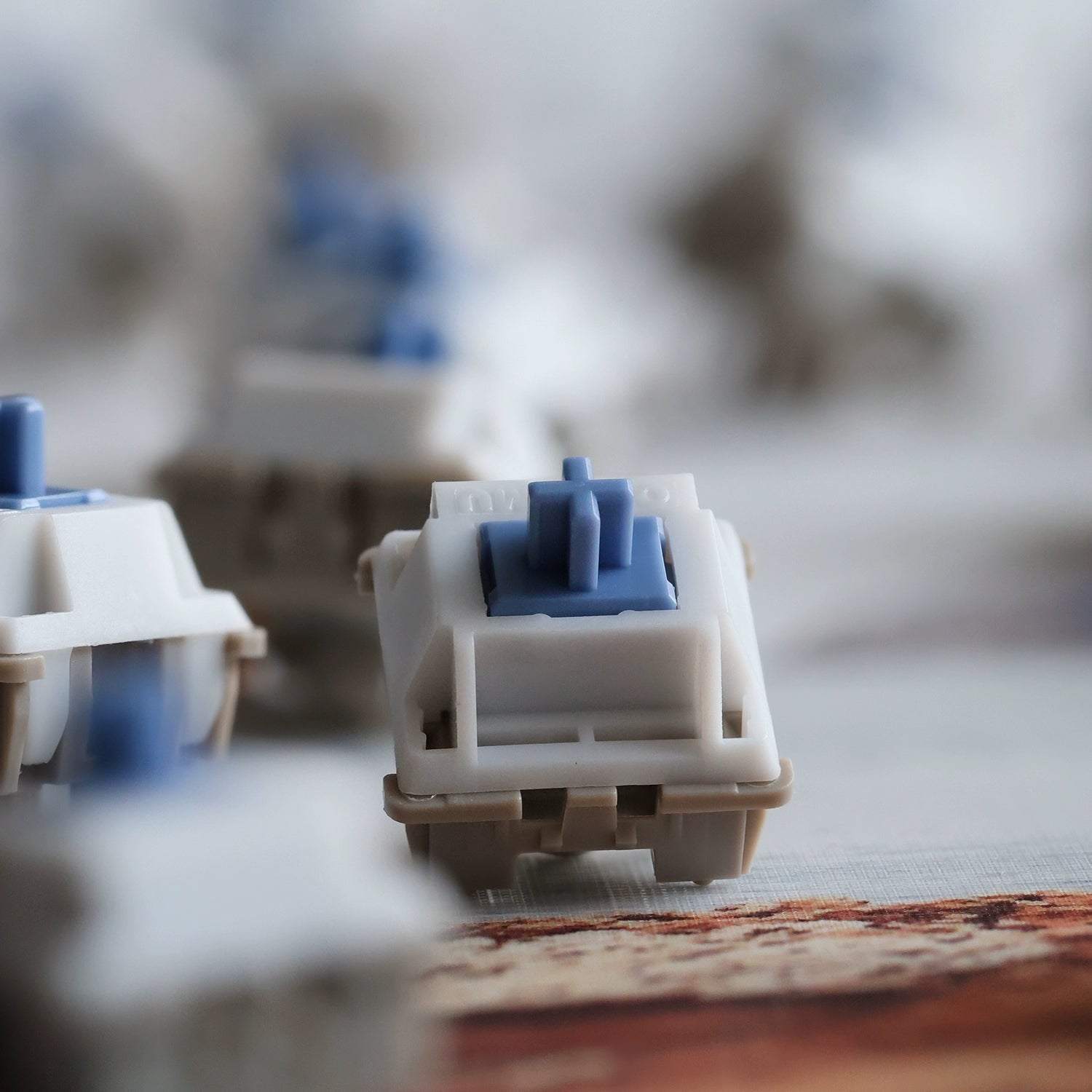

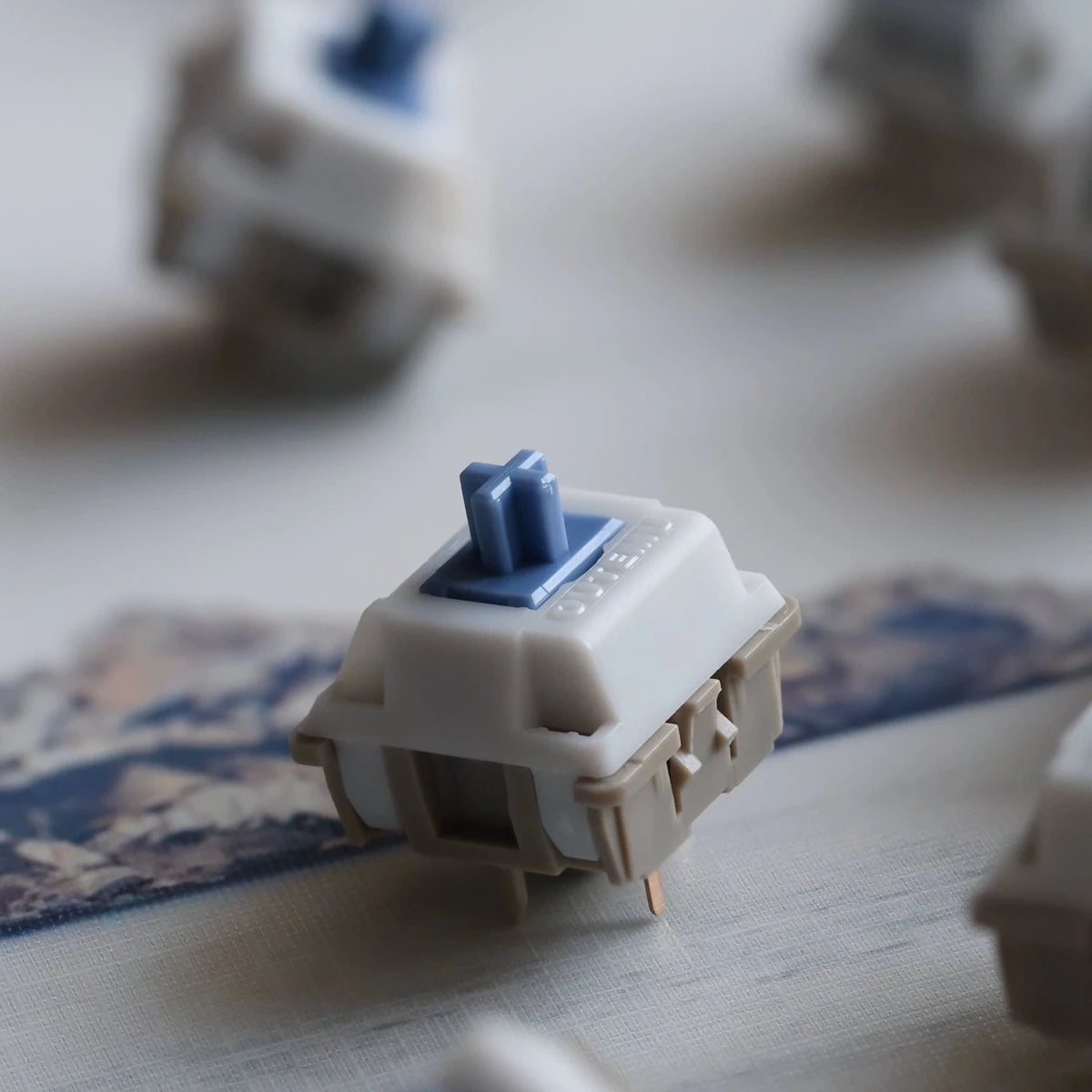

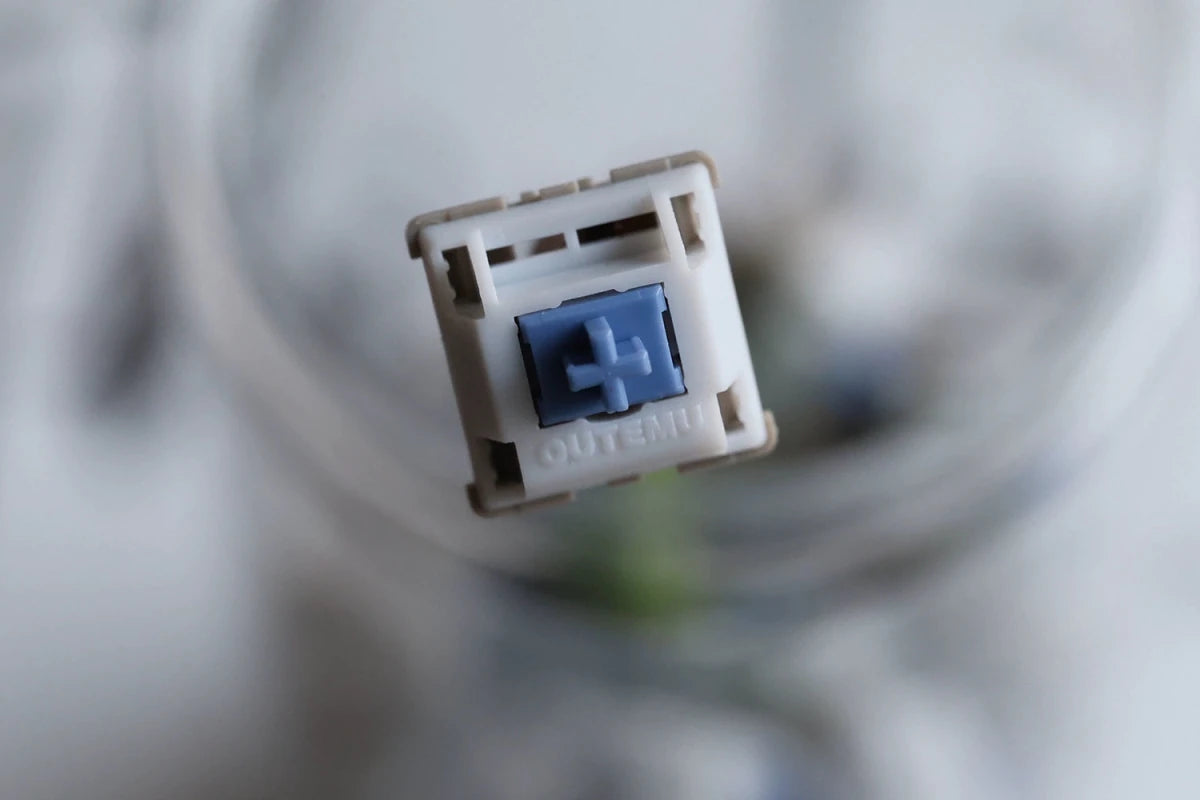

The JKDK x XCJZ Silent Tactile Switch, also called the Feather Silent Switch, is a collaboration between JKDK and XCJZ, created to deliver an ultra-quiet yet deeply tactile typing experience. Designed for custom mechanical keyboard enthusiasts, this switch combines a large tactile bump with soft bottom-out silicone dampening for reduced noise and enhanced feedback.
Each component is fine-tuned for comfort and clarity, from the lightly factory-lubed internals to the transparent bridge-style housing for LED compatibility. With NLpro material housings and a POM+TPU blend stem, this switch offers both durability and performance.
🔧 Switch Specs:
-
Type: Silent Tactile
-
Pins: 5-Pin (Hot-Swappable)
-
Manufacturer: OUTEMU
-
LED Compatibility: SMD LED / Bridge-style LED slot
-
Top Housing: NLpro
-
Bottom Housing: NLpro
-
Stem: POM + TPU blend
-
Spring: 16mm single-stage
-
Factory Lube: Light lubrication on spring, base, and stem sides
📏 Travel & Actuation:
-
Actuation Travel: 2.0 ± 0.2 mm
-
Tactile Bump Point: 2.5 ± 0.2 mm
-
Total Travel: 3.5 ± 0.4 mm
-
Full Compression (Soft Bottom-Out): ~3.9 ± 0.4 mm
⚙️ Force Specs:
-
Actuation Force: 35g ± 5g
-
Initial Tactile Force: 25g ± 5g
-
Peak Tactile Force: 55g ± 5g
-
Force at Actuation: 45g ± 5g
-
Bottom-out Force: 63g ± 5g
-
Return Force: 20g ± 5g
💡 Why Choose JKDK x XCJZ Silent Tactile Switch?
Engineered for quiet comfort without sacrificing feedback, this switch is ideal for both work and gaming setups. Its carefully balanced tactile profile and noise reduction make it a standout for silent mechanical keyboard builds.
