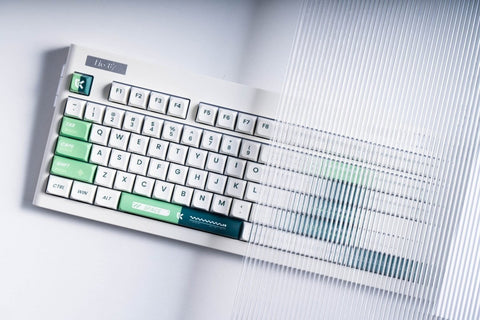

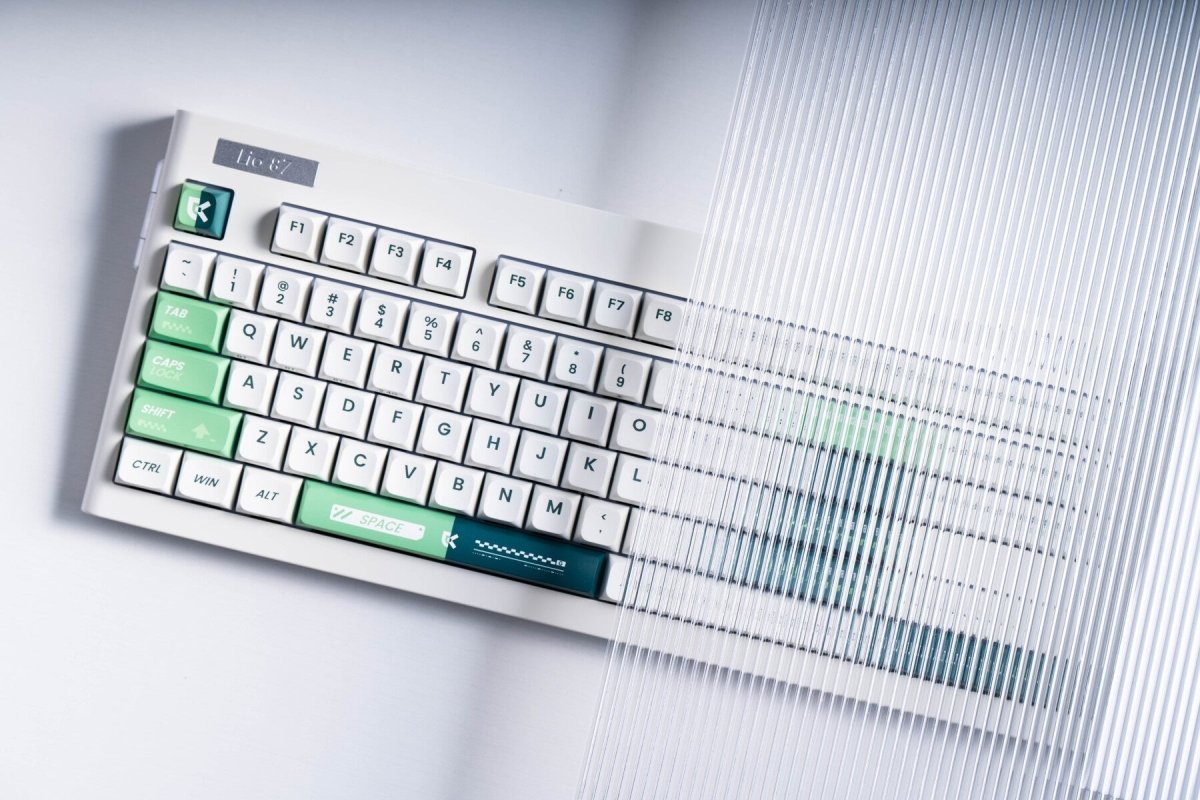

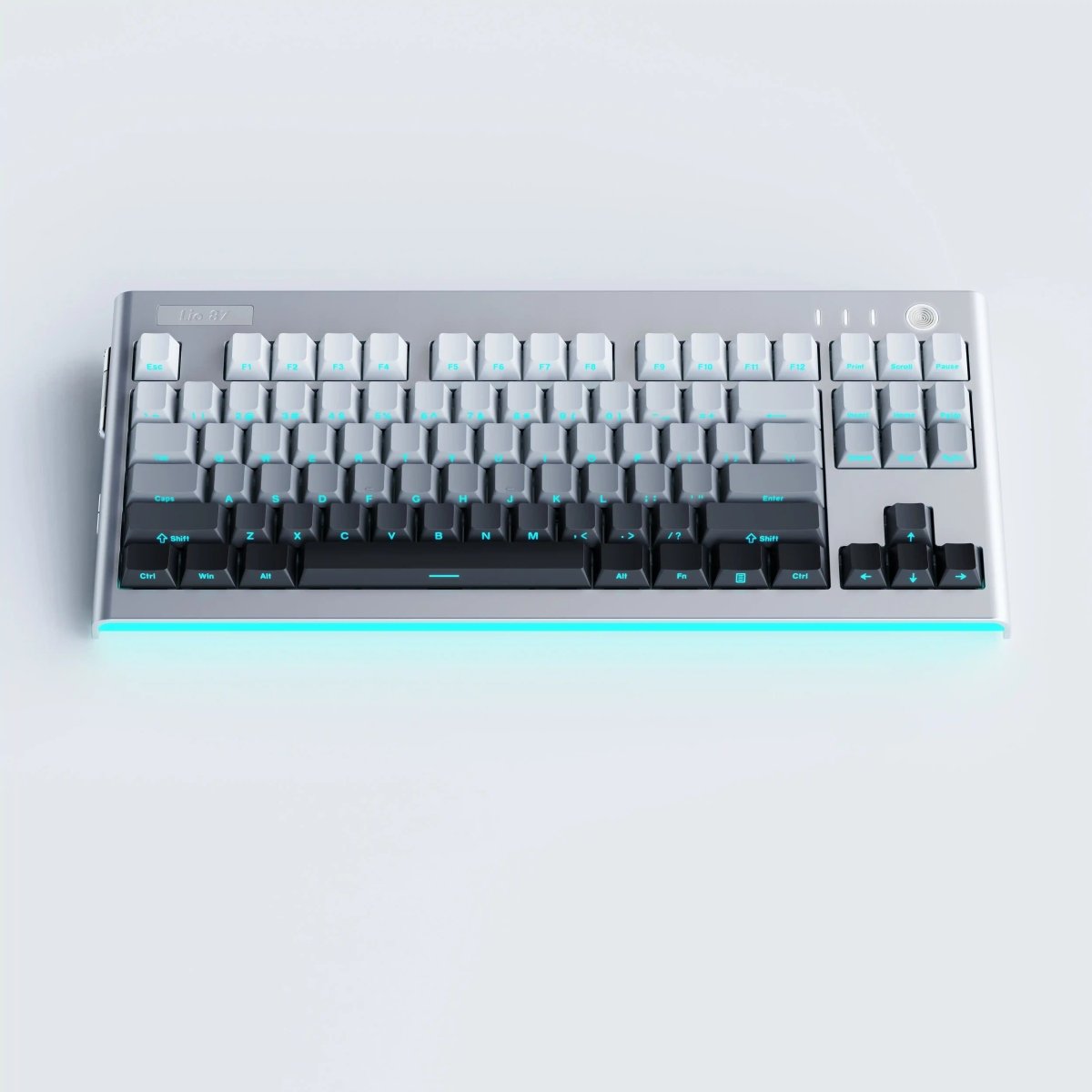

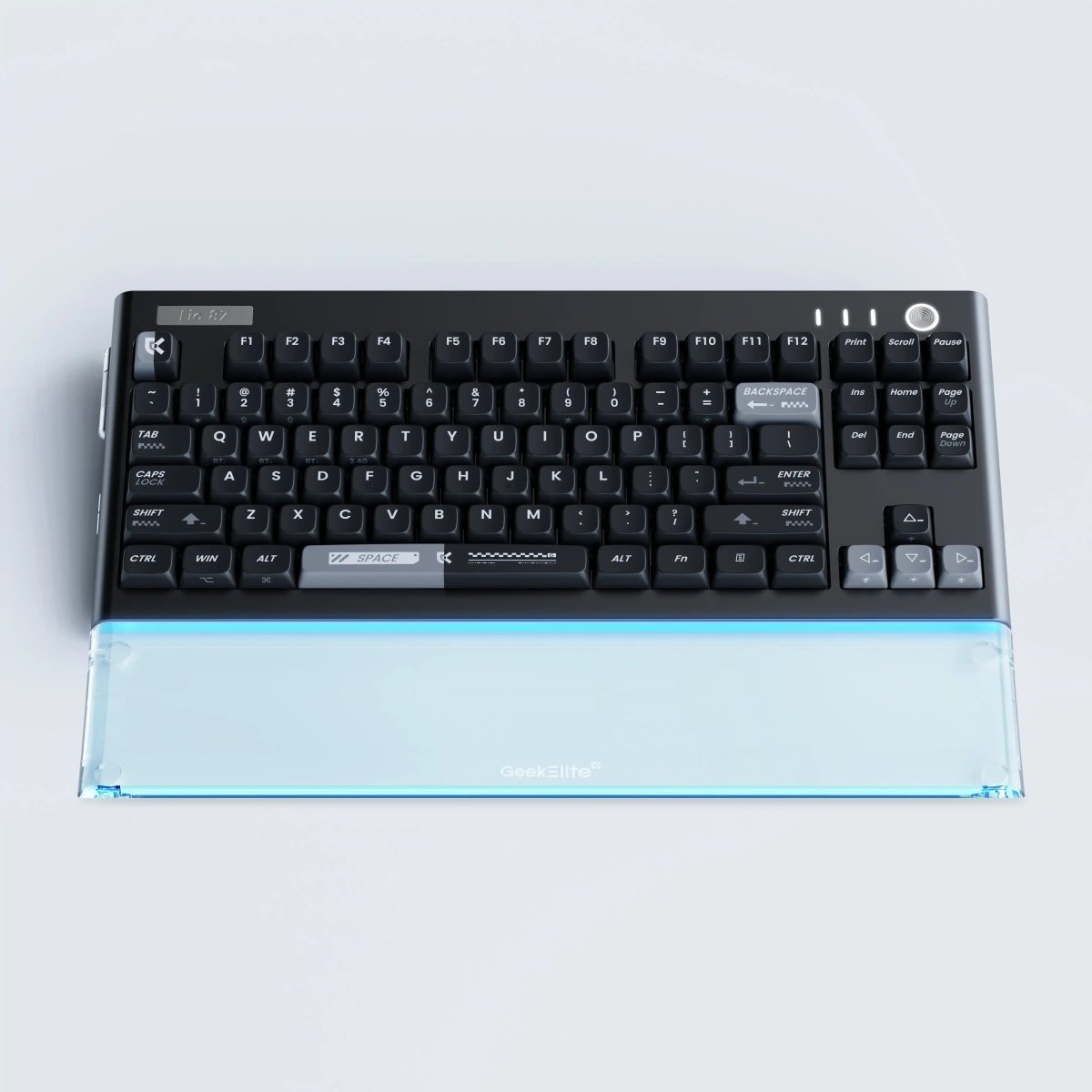

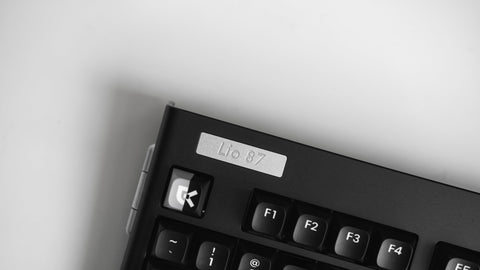

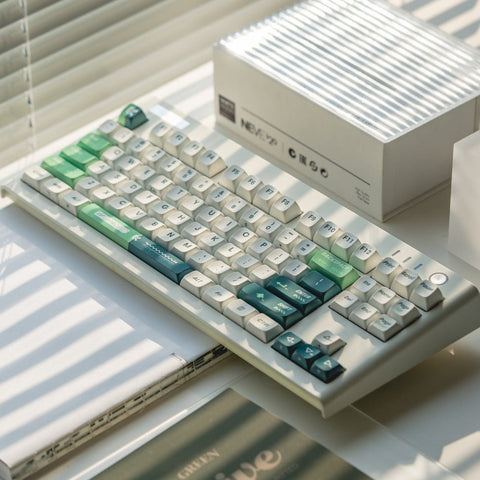

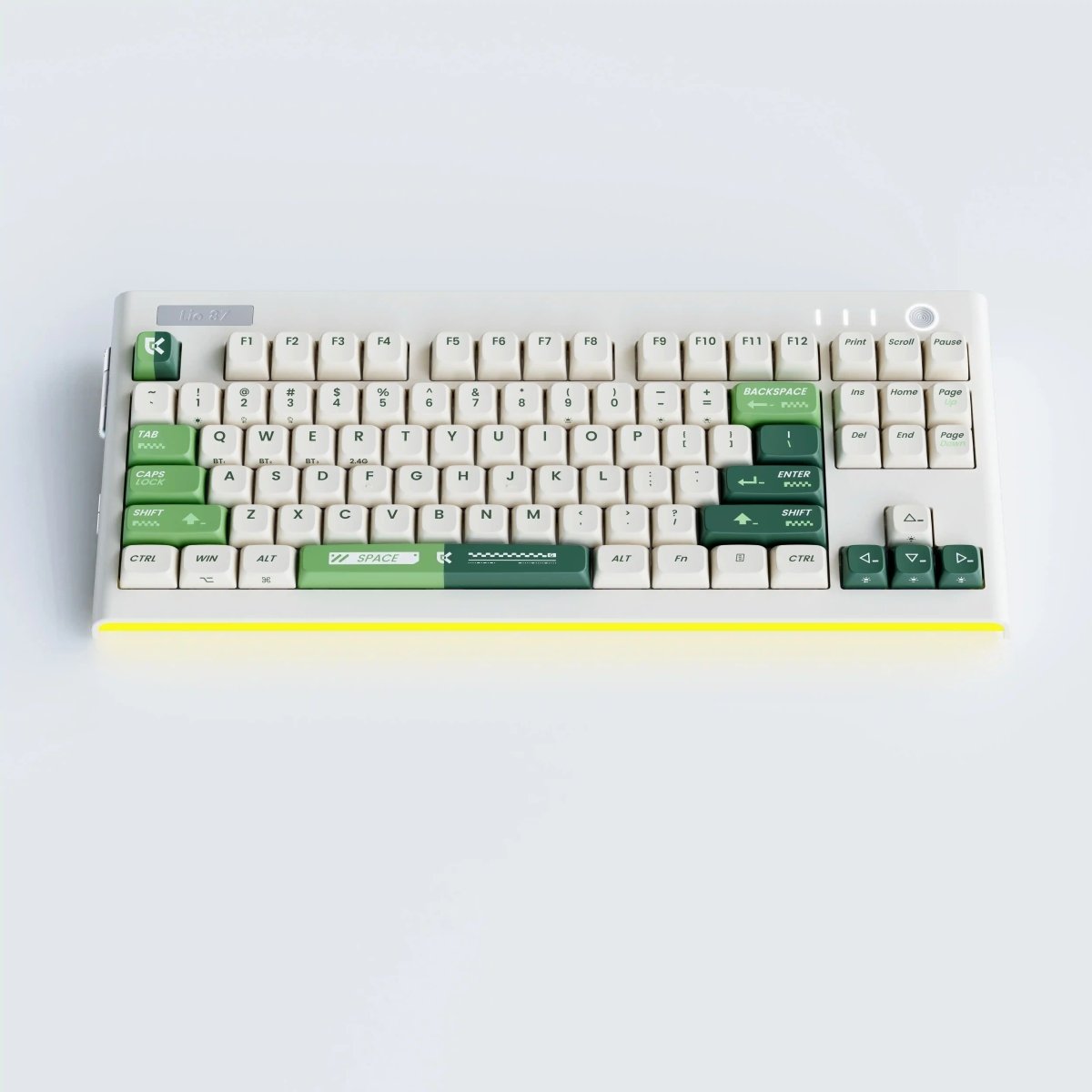

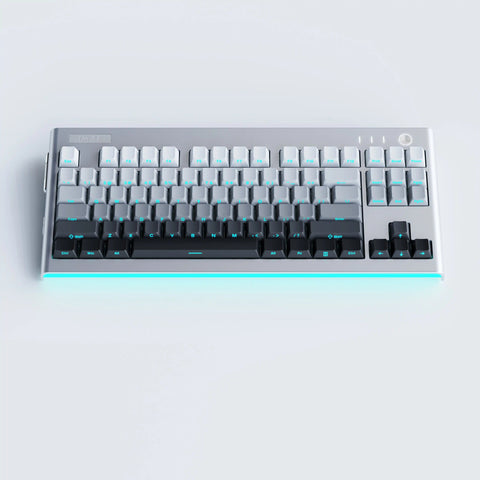

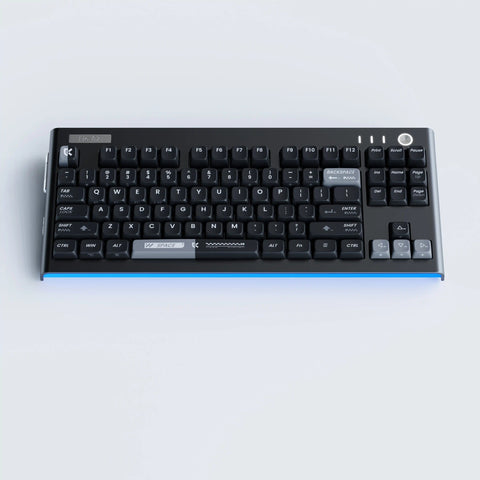

Lio87 TKL 80% Pre-Built Mechanical Keyboard - Tri-Mode

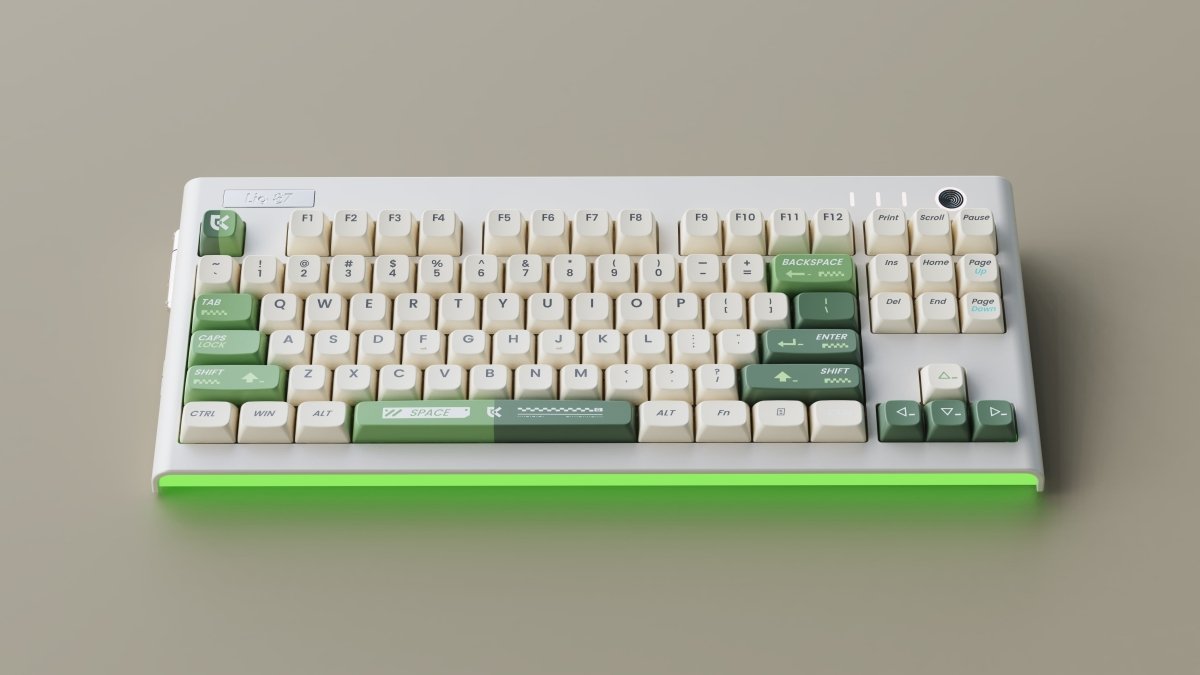

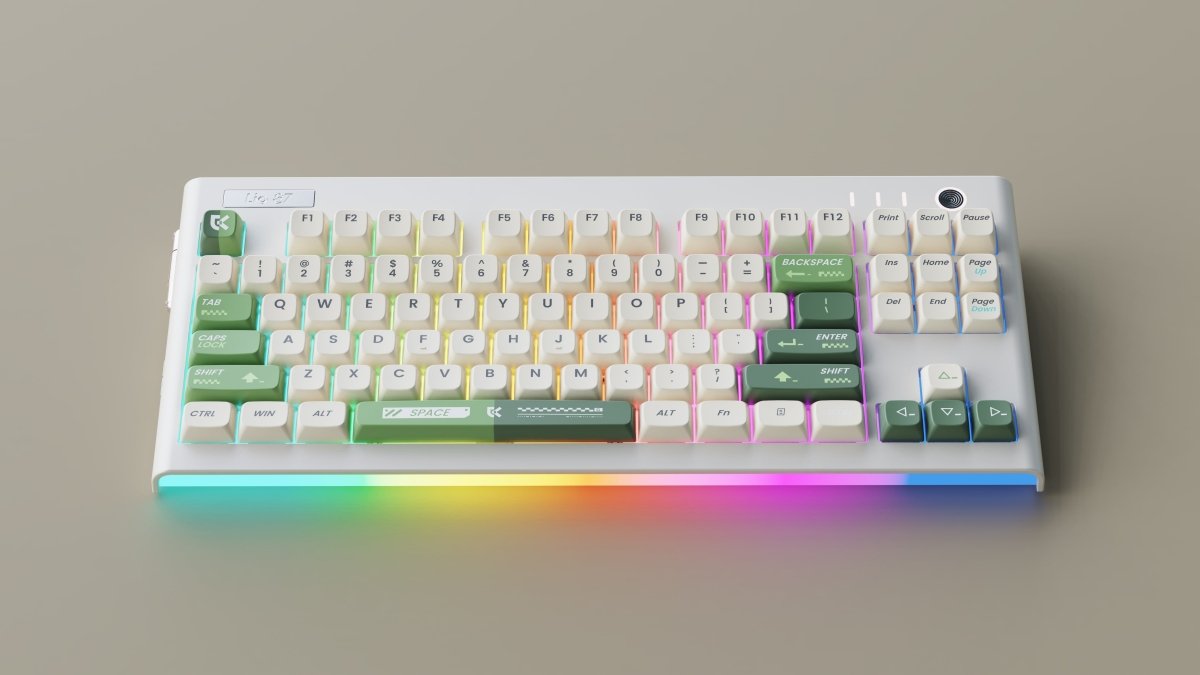

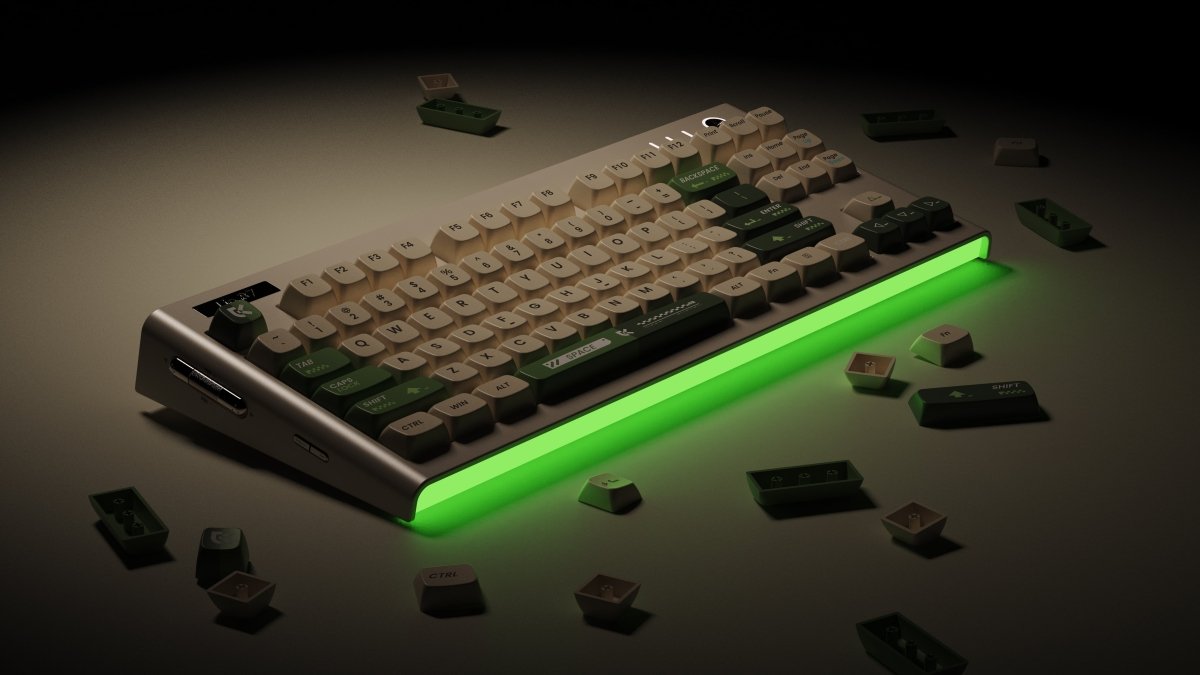

Experience the ultimate in keyboards with the Lio87 featuring a nano-spray coated case, a large light bar, a left-side scroll wheel, a battery life of over a week, and high-quality PBT keycaps, this keyboard offers smooth, precise typing and a triple-mode connection for maximum flexibility.

Software

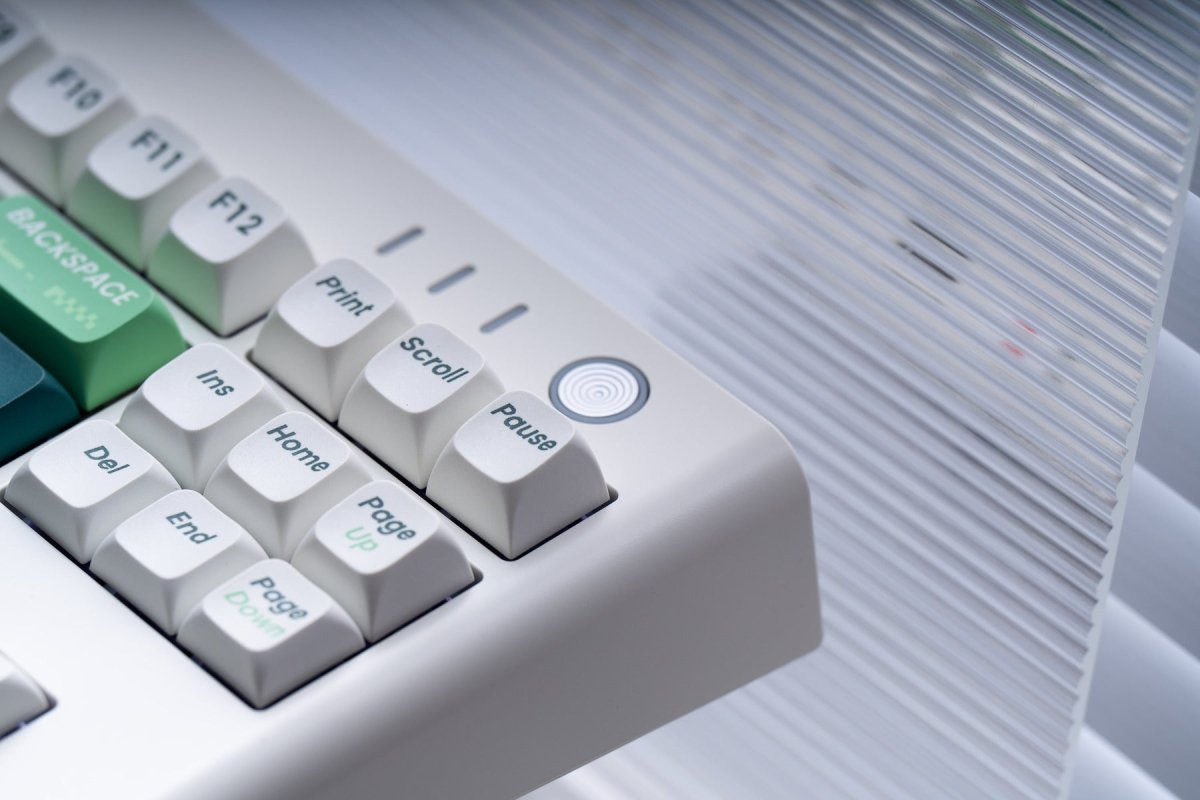

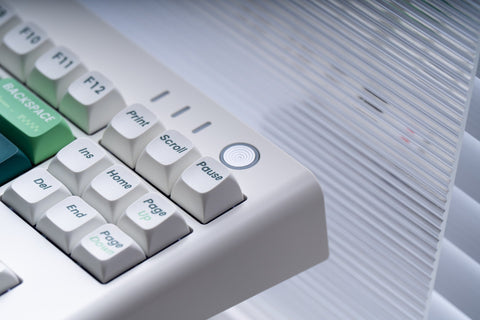

Note: This software can only change the functions of some keys, and the functions of some keys (Print, Scroll, Pause, Home, End) cannot be changed.

Feature

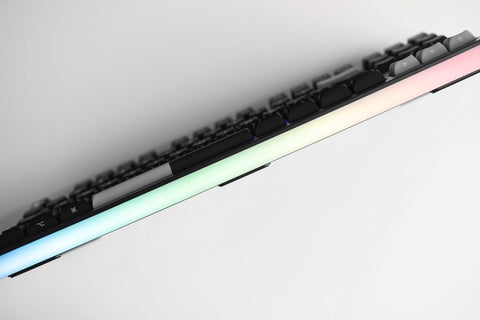

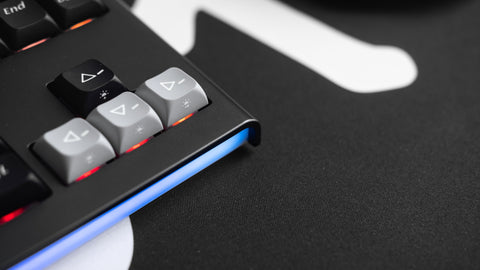

• A keyboard with nano-spray coating on the case, a large light bar, a scroll wheel on the left of the case, a USB2.0-Hub port, a triple-mode connection, a battery life of more than a week with the lights on, and dye-sublimation on all five sides with high PBT content Keycaps, smooth acting switches, six-layer inner tank filling with an FR4 plate (Apply PU film to optimize the typing sound), and an average delay of about 10ms.
• Top-like mount, good consistency, strong feedback.

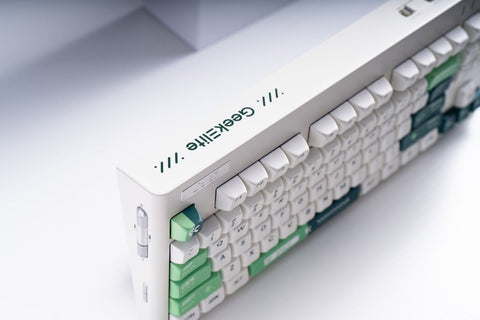

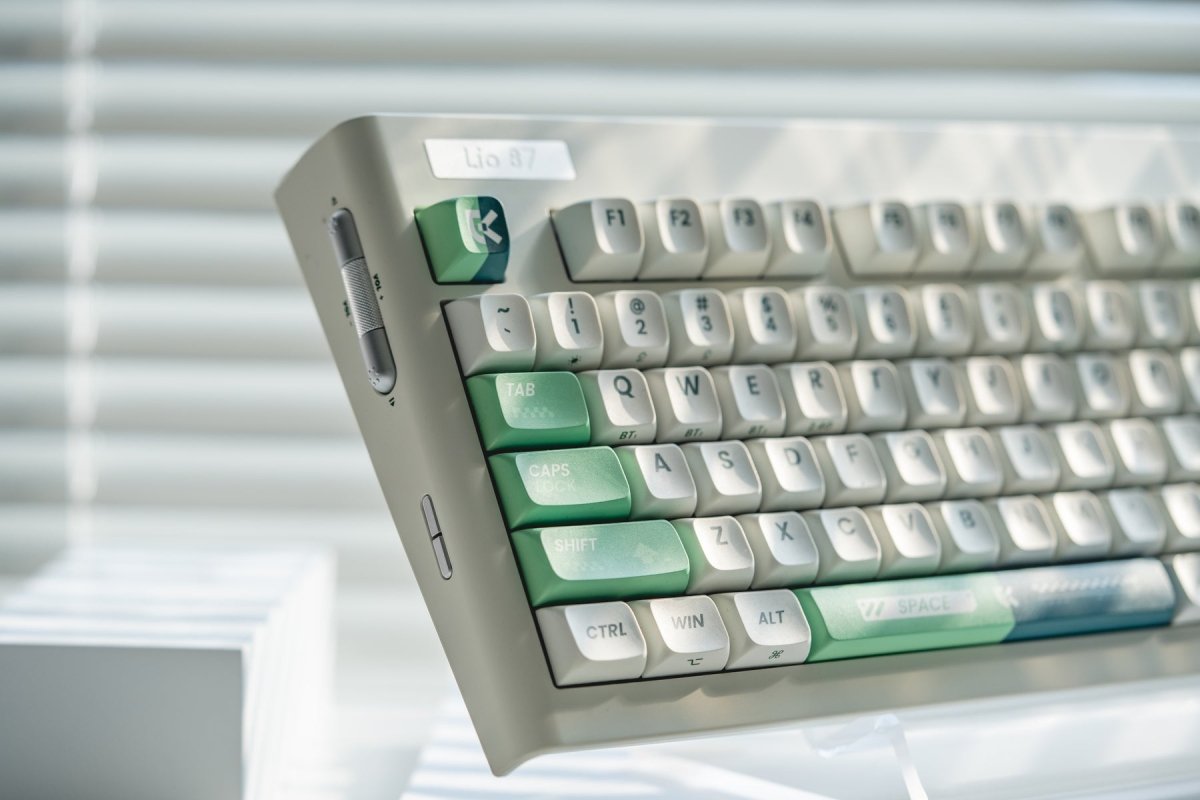

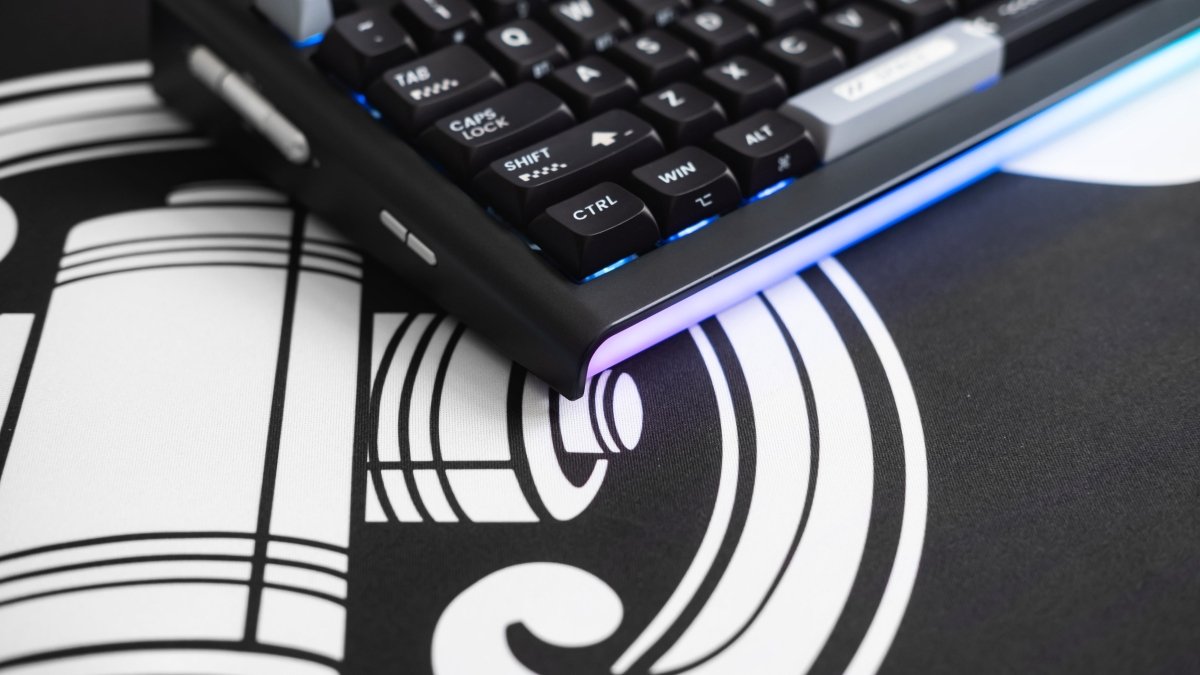

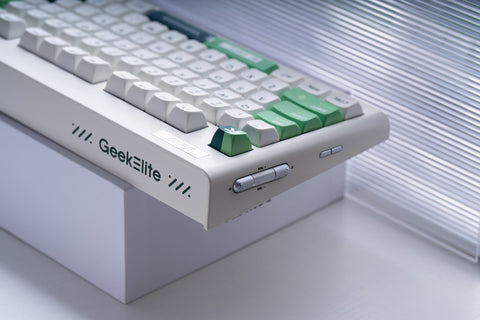

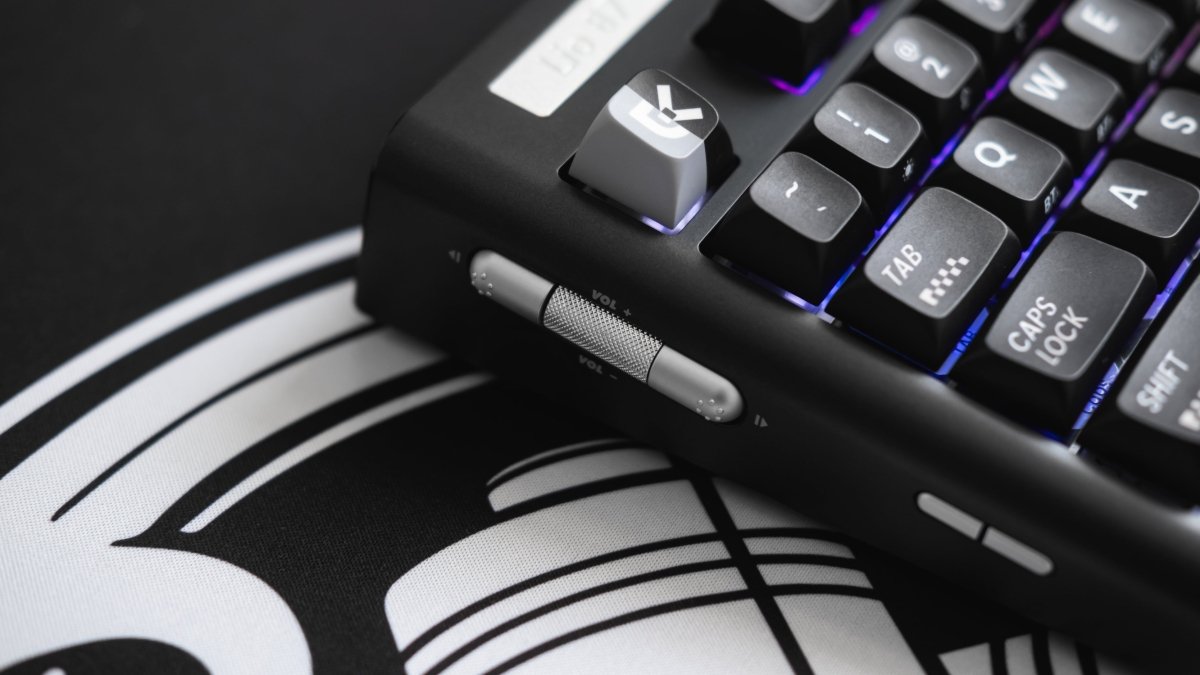

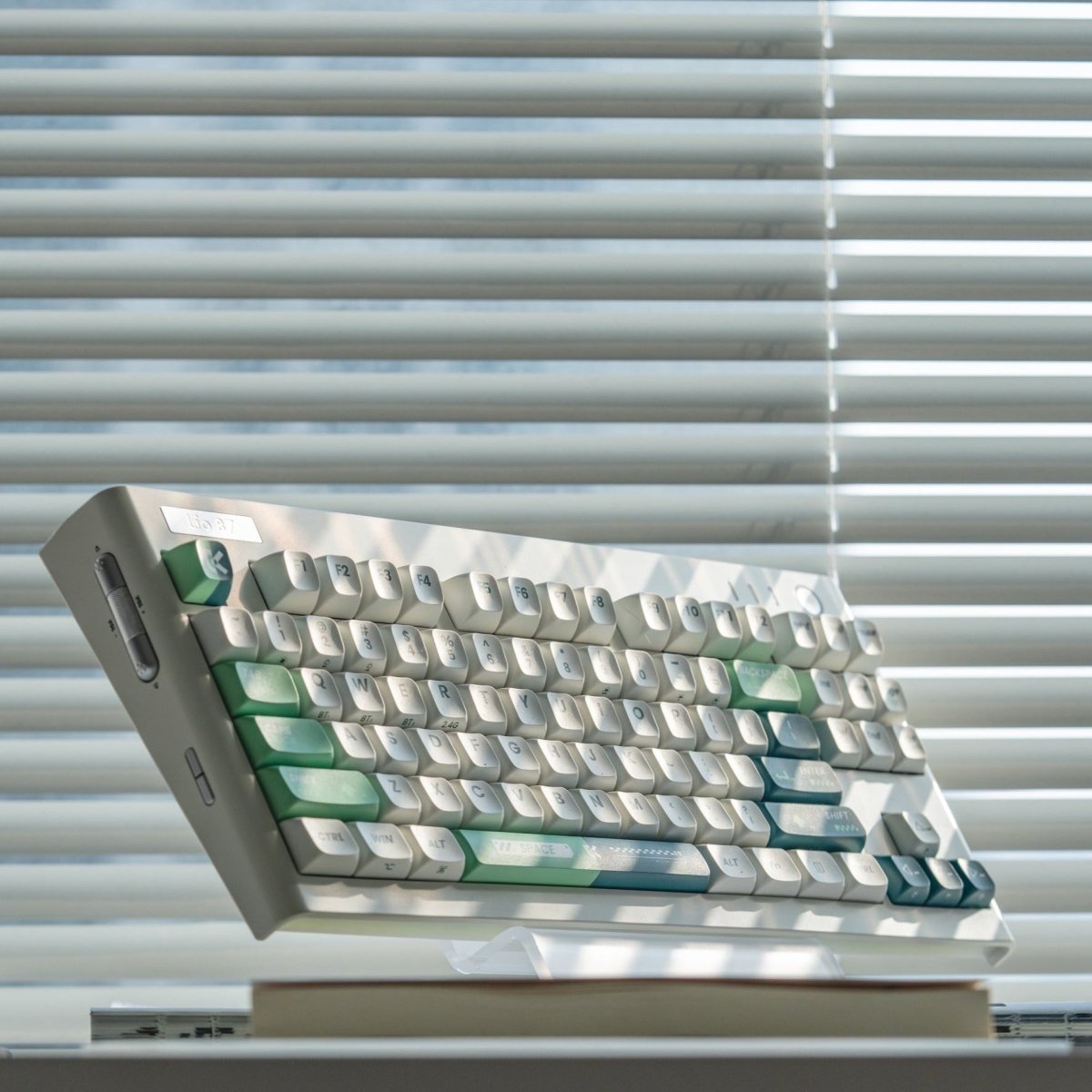

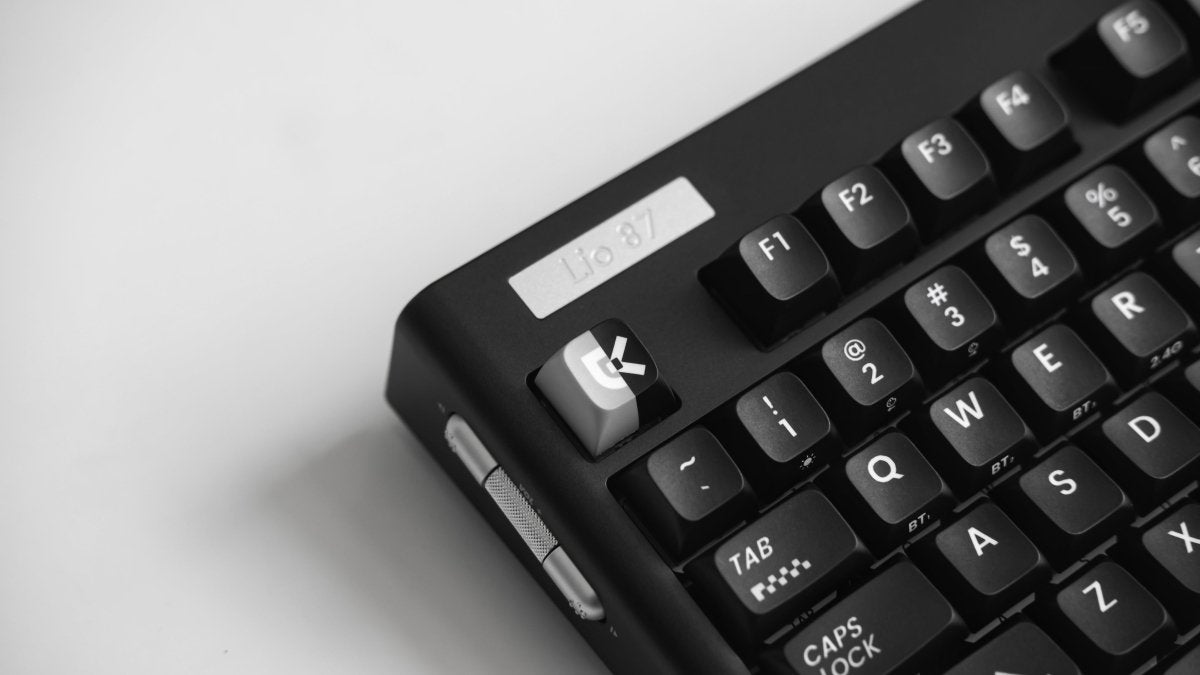

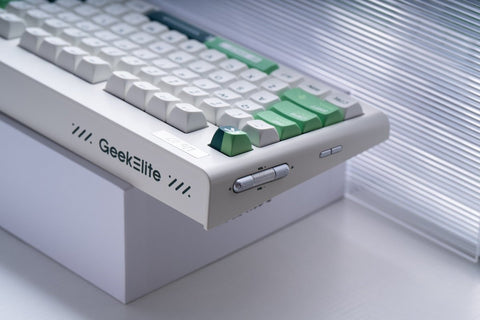

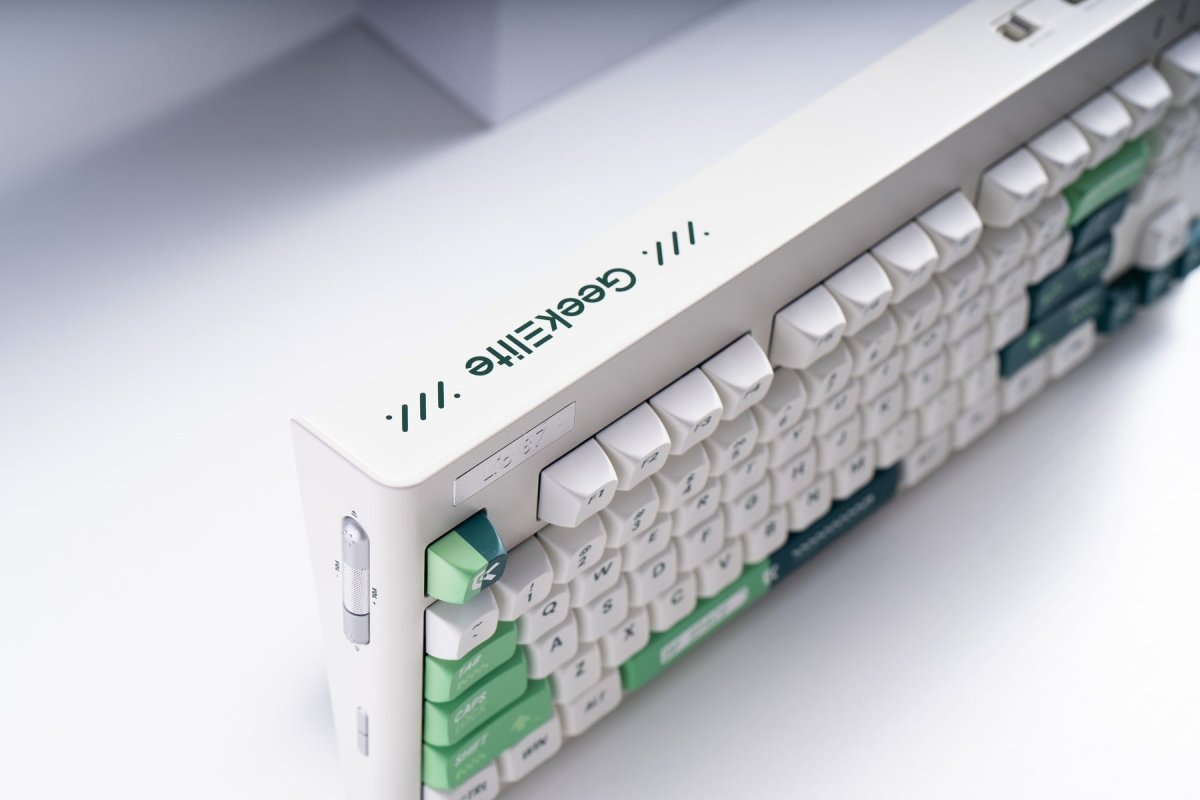

• The first 87 layout keyboard with a left-side horizontal scroll wheel design on the market. Comfortable human-keyboard interaction.
• The whole case matches the spray texture of the first-line big brands.
• The filling is full, and the top case is with the poron pad. It is the first keyboard in the industry to stick Pu film on the PCB.

Typing Test

Specifications if Product is Pre-Built:

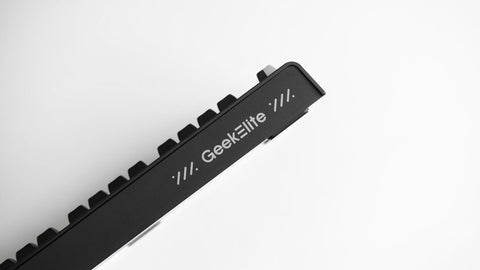

• Brand: GeekElite
• Keyboard name: Lio87
• Number of keys: 87 keys
• Net weight: About 1.3KG
• Size: 375mm*160mm*38mm
• Front height: 18.5mm
• Case material: Plastic
• Keycap Material:Doubleshot PBT (PBT content is higher than 80%)
• Keycap Process: Five-sided sublimation
• Keycap Thickness: 1.6mm
• Keycap Profile: MDA
• Keycap Name: KTT Lavender switches
• Keycap Type: Linear
• Keycap Stem: POM extended stem
• Switch Top cover material: PC
• Switch Bottom cover material: Mixed nylon
• Switch Actuation force: 43gf
• Switch Bottom out force: 50gf
• Switch Actuation travel: 1.9mm
• Switch Total travel: 3.5mm
• Switch Spring length: 22mm
• Switch Spring material:KOS steel wire imported from South Korea
• Switch Standard factory lubed only
• Connection: Type-C
• Support: wired, 2.4G, Bluetooth
• Bluetooth/2,4G name:GeekElite-1
• Bluetooth version:BLE5.0
• Battery capacity: 5000mAh
• Polling rate: 1000Hz (Wired / 2.4G), 125Hz (Bluetooth)
• Backlight: RGB, with programmable software
• OS support: Compatible with WIN, MAC OS
• USB Cable length: 1.7m

Electronic Performance

• N-key rollover, all keys work when waking up from sleep
• Charge once a week with all lights on, and charge once a month with only the light strip on.
• The driver is under development
• Wired delay is 10ms, 2.4G 12ms, Bluetooth is about 15ms
• Wireless transmission distance: max around 10 meters (The distance may become shorter depending on the obstruction)

Included

• Lio87 mechanical keyboard
• Bottom case silicone
• Bottom case switch Poron pad
• Anti-static PU film on PCB: Medical-grade waterproof and anti-static PU material, applied by hand, so it may be a little irregular.
• IXPE switch pad
• Poron plate pad

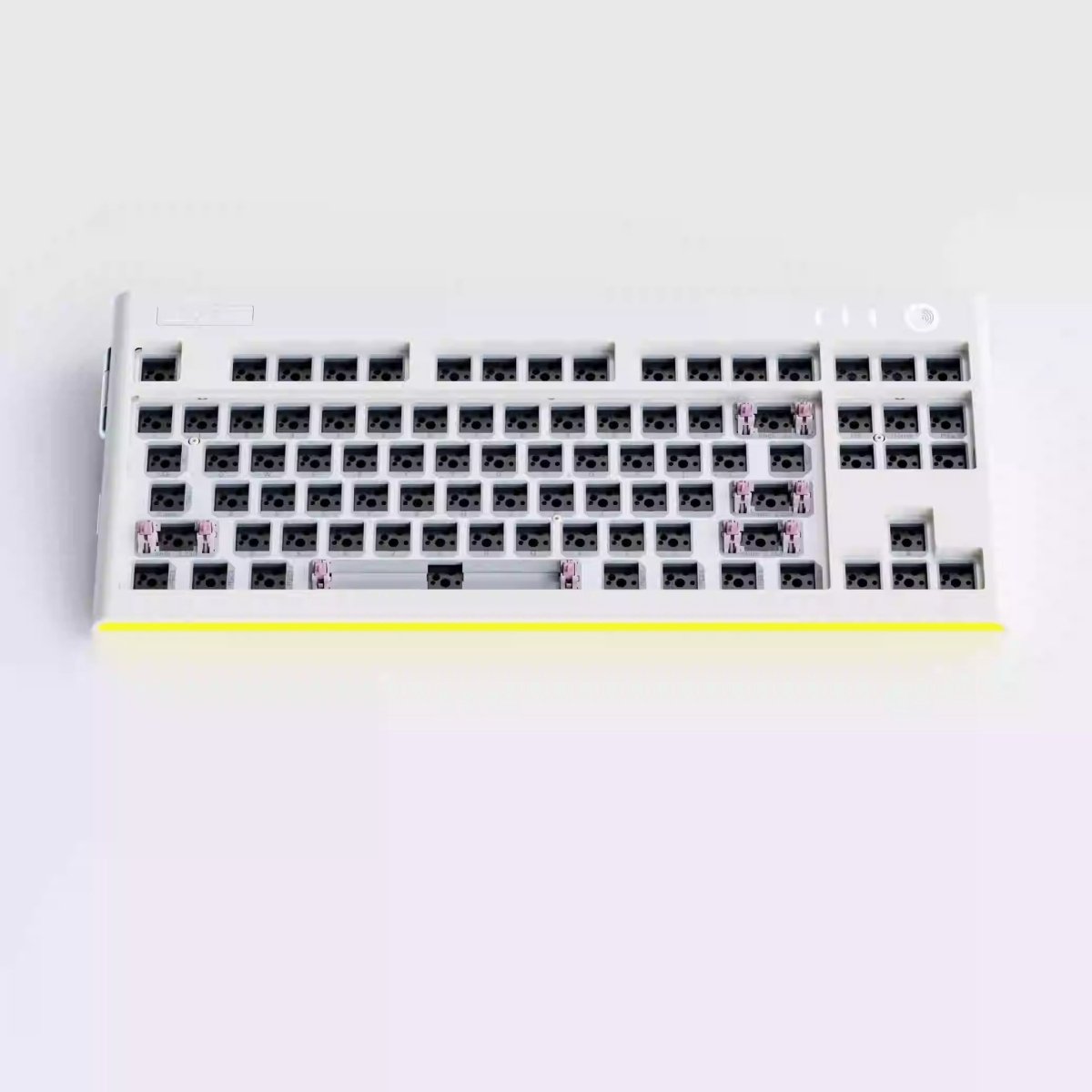

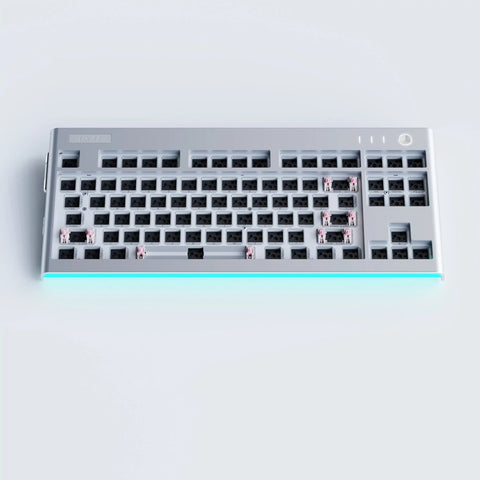

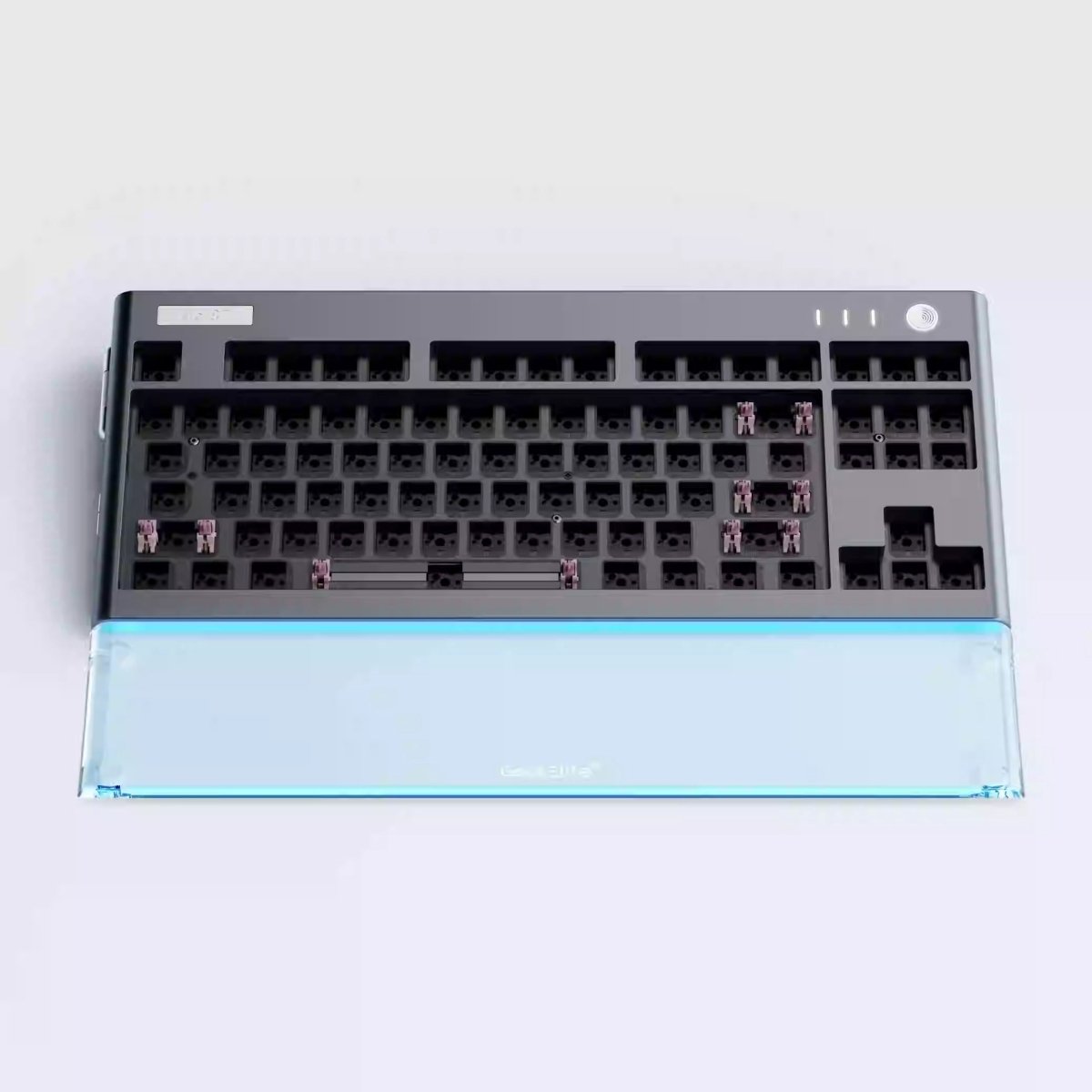

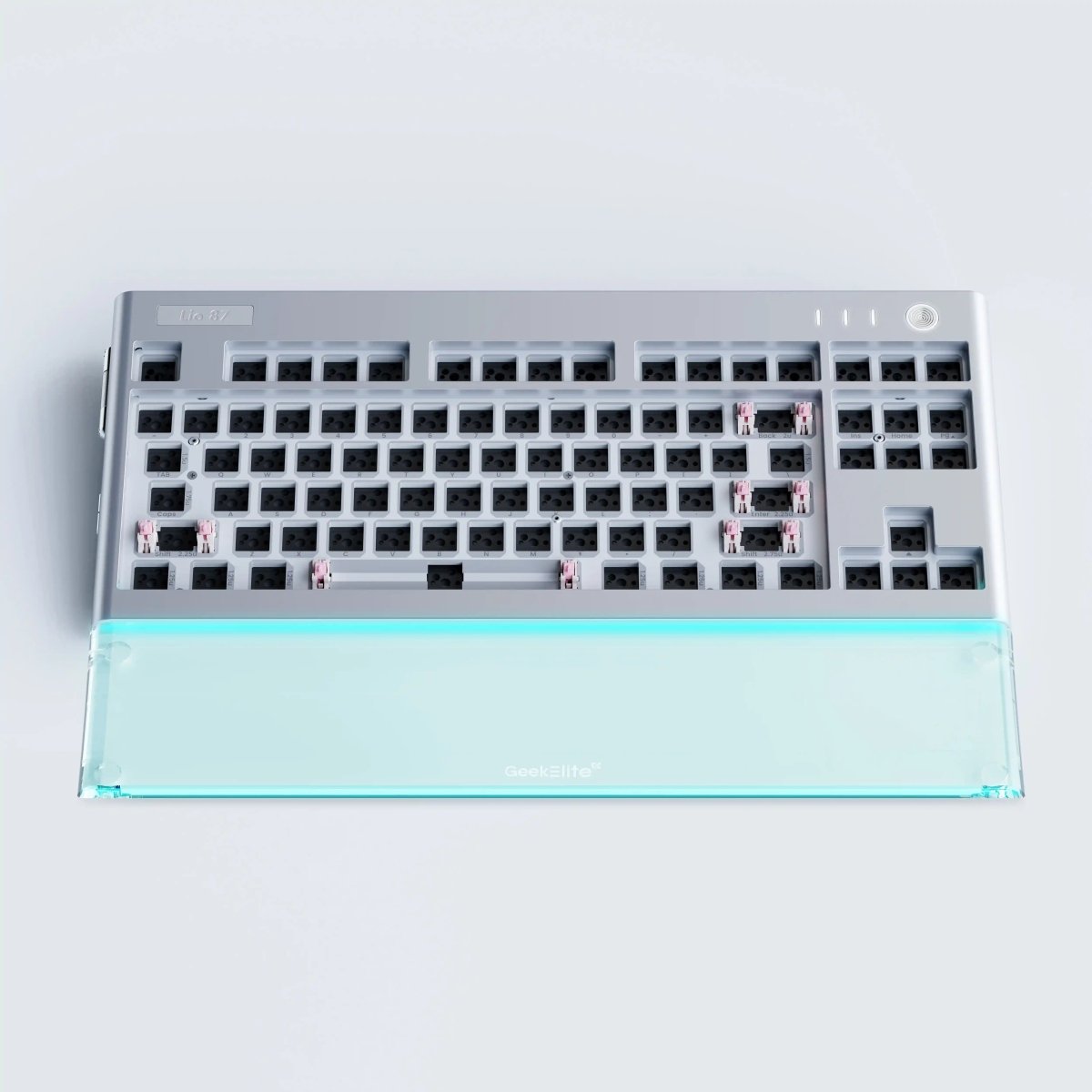

• FR4 plate: not flex cut. At the same time, to facilitate players to replace keycaps, we have silk-printed keycap length standards and key position notes under each corresponding key.
• Poron pad for the top case: To avoid cavities in the top case caused by the design, we manually pasted the Poron pad on all cavities.
• USB cable
• Dust cover
• Two-in-one switch key puller

Warm Reminder

• There is no mute button on the left scroll wheel.

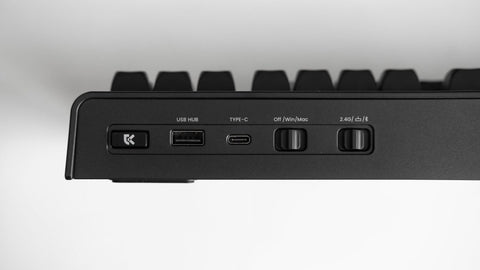

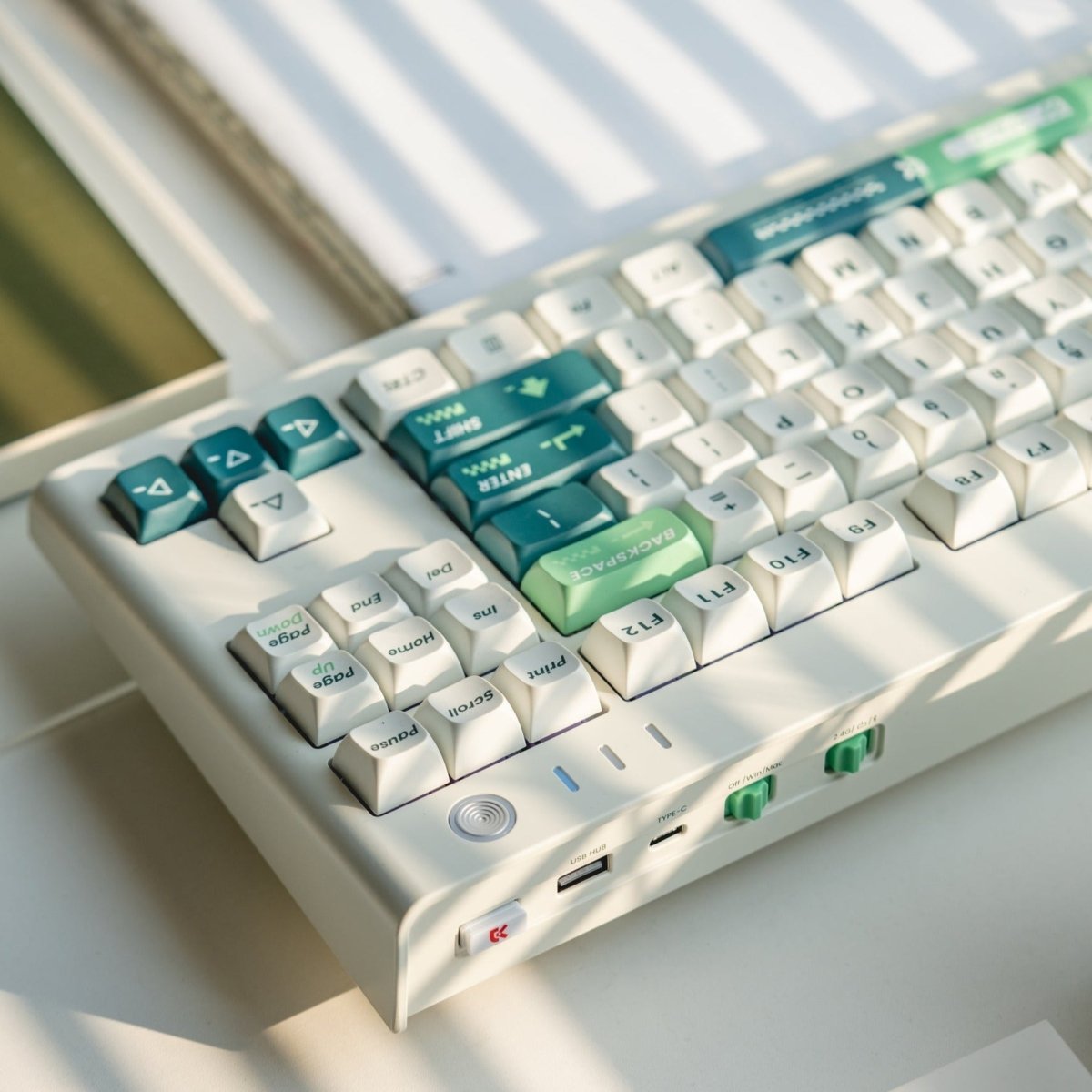

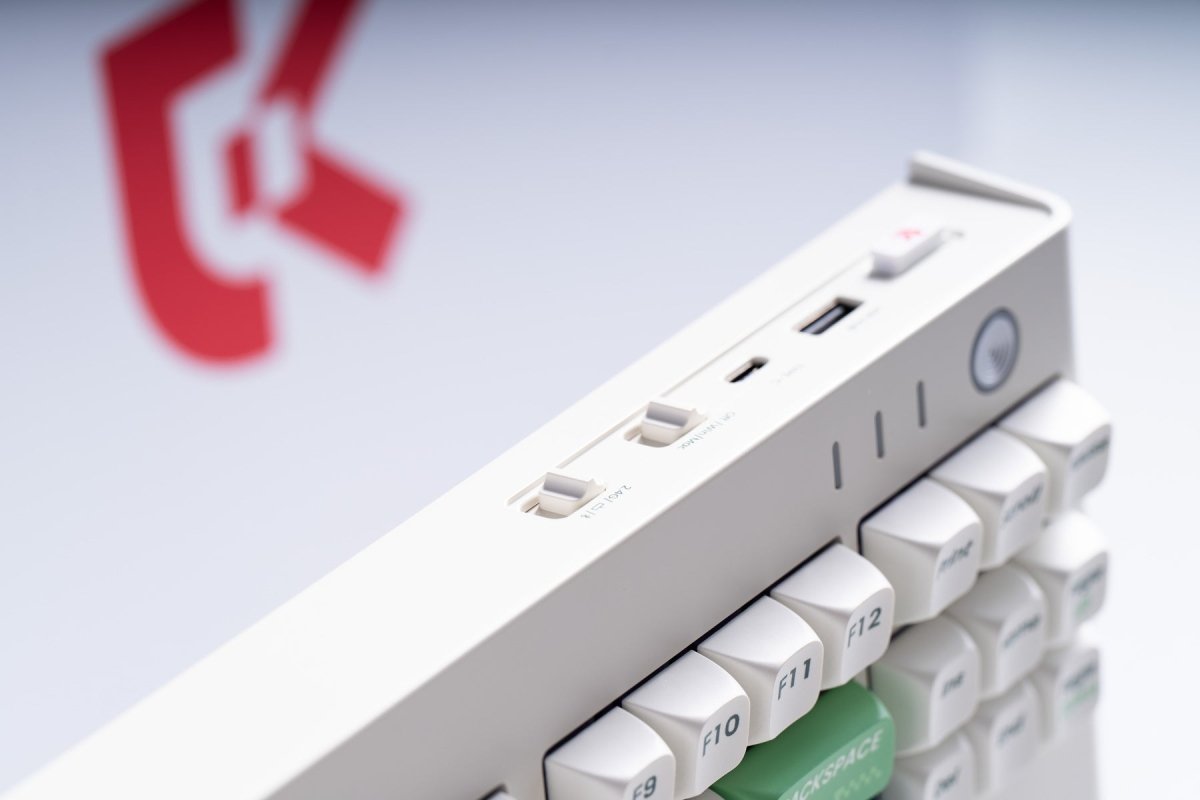

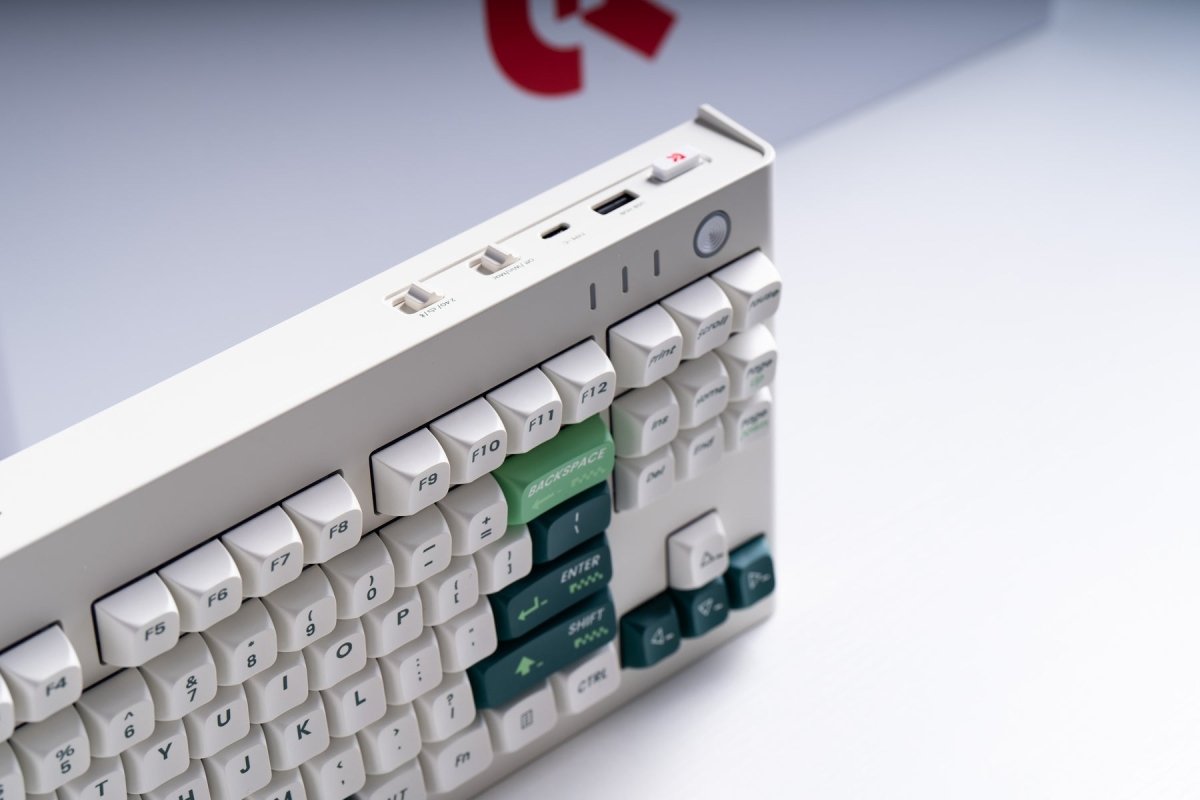

• USB 2.0-Hub can only be used under wired conditions. Among the solution providers currently on the market, USB 3.0 solutions always have compatibility issues with keyboards. Therefore, we chose the reliable 2.0 solution currently on the market. At the same time, because wireless transmission cannot drive such a fast upload rate, this function can only be used in wired mode.

Operation Instructions

• Remove the keyboard and insert it into the computer USB PORT.
• Check whether the PC can recognize the keyboard correctly.
• Operate according to the User Manual.
• Please do not use the product in an extreme environment.

Abnormal Occurrences

Solutions to the conditions in which the device cannot be recognized, with no functions or abnormal functions:

• Check whether the USB ports of the computer or the keyboard are damaged
• Check whether the USB port of the device is inserted correctly
• Check whether computer settings are correct
• Disconnect and reinsert
• Restart the computer

If the suggestions above cannot solve the problems, please contact us for further help.
